Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of waste paper compactor in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality waste paper compactor at low price from our factory. Welcome to contact us for pricelist.

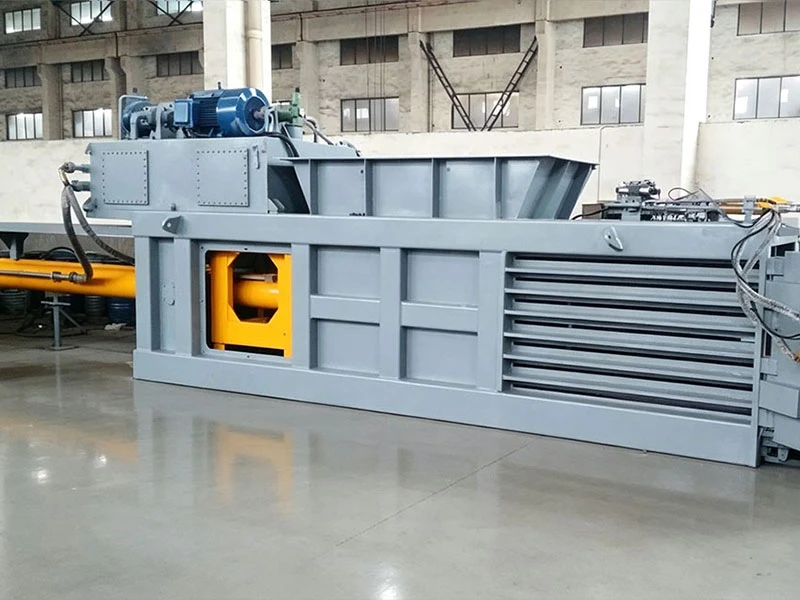

Hydraulic Paper Baling Press
The Hydraulic Paper Baling Press is a high-efficiency waste paper compaction machine designed for recycling centers, paper mills, waste management companies, printing plants, packaging facilities, and other operations that handle large volumes of waste paper and cardboard. Using a powerful hydraulic compression system, the baling press compresses loose paper materials into compact, high-density bales that are easier to store, handle, transport, and recycle.
Designed for continuous and reliable operation, the Scrap paper baling machine can process various recyclable paper materials, including waste paper, cardboard, corrugated boxes, newspapers, magazines, office paper, kraft paper, and paper packaging waste. Hydraulic pressure provides stable and uniform compression, helping produce well-formed bales with consistent dimensions and density.
By significantly reducing the volume of loose paper waste, the hydraulic paper baler helps recycling businesses maximize storage space and reduce transportation frequency and logistics costs. The compact bale format also makes material handling more efficient, allowing operators to use forklifts, pallet trucks, or other material-handling equipment for loading and transportation.
The machine can be configured with different bale sizes, pressing forces, feeding methods, and hydraulic system specifications according to the customer's material type, processing capacity, available space, and downstream recycling requirements. Whether used for a small recycling operation or an industrial-scale waste paper processing line, the Hydraulic Paper Baling Press provides a practical solution for efficient paper waste volume reduction and resource recovery.
What is a Waste Paper Baler?
A waste paper baler (also known as a waste paper compressor or hydraulic waste paper baler) is a specialized equipment that compresses scattered waste paper into compact packages through a hydraulic system. It is a key equipment in the waste paper recycling industry chain, widely used in waste paper packaging stations, cardboard box factories, printing factories, and various old material recycling companies.
The core value of a waste paper baler is to compress fluffy waste paper into regular and dense blocks, achieving the following goals:
- Volume reduction: Compression ratio can reach 5:1, saving up to 80% space
- Logistics optimization: increase the loading capacity of bicycles and significantly reduce transportation costs
- Storage efficiency increase: Stackable storage of parcels greatly improves site utilization
- Raise selling price: Parcels that meet the purchasing standards of paper mills can be sold at a higher price
Technical Parameters of Waste Paper Baler
|
Model |
Master cylinder pressure (ton) |
Feeding port size (W×H/mm) |
Conveyor width (mm) |
Package size (W×H/mm) |
Production (Package/hour) |
Main motor power (KW) |
|
HPA-125 |
125 |
2050×1100 |
1600 |
1100×1250 |
6 |
37 |
|
HPA-160 |
160 |
2050×1120 |
1600 |
1120×1300 |
6 |
2×22 |
|
HPA-250 |
250 |
2050×1120 |
1600 |
1120×1300 |
6 |
2×37 |
|
HPA-315 |
315 |
2050×1120 |
1600 |
1120×1330 |
6 |
45+37 |
Technical Specifications of the HPA-250 Waste Paper Baler
|
Reference nouns and content |
Note |
|||||
|
1 |
Main pressure cylinder |
Model |
YG340/240 |
Quantity |
1 piece |
250 tons |
|
Public Praise for Push |
2500kN |
Journey |
4350mm |
|||
|
2 |
Opening the oil cylinder |
Model |
YG110/75 |
Quantity |
1 piece |
20 tons |
|
Public Praise for Push |
200kN |
Journey |
715mm |
|||
|
3 |
Locking the door with an oil tank |
Model |
YG140/90 |
Quantity |
1 piece |
40 tons |
|
Public Praise for Push |
400kN |
Journey |
80mm |
|||
|
4 |
Leak oil cylinder |
Model |
YG63/45 |
Quantity |
1 piece |
6 tons |
|
Public Praise for Push |
60kN |
Journey |
1680mm |
|||
|
5 |
Hydraulic system operating pressure |
≤26MPa |
||||
|
6 |
Compression chamber specifications |
1900x1120x1300mm |
|
|||
|
7 |
Specifications of the feeding port |
2200x1120x1300mm |
||||
|
8 |
Block size |
(0～1200)x1120x1300mm |
||||
|
9 |
Packing range |
Waste paper, straw, plastic, linen, etc |
||||
|
10 |
Packaging methods |
Seven horizontal lanes |
||||
|
11 |
Single no-load cycle time |
About 85 seconds |
||||
|
12 |
Production efficiency |
6-12 packs per hour |
||||
|
13 |
Door opening method |
Open the door from right to left facing the front door |
||||
|
14 |
Methods of Dispute Resolution |
Manual binding and front pushing out the bag |
||||
|
15 |
Operating methods |
Electronic control, manual automation, remote control |
||||
|
16 |
Conveyor specifications |
10x1.6m with a power of 7.5kW |
||||
|
17 |
Fuel tank capacity |
2700L |
13 barrels |
|||
|
18 |
Power specifications |
380V/3P 50Hz |
||||
|
19 |
Total equipment power |
84.35kW |
||||
|
20 |
Cooler |
Model |
GLC-21m² |
Heat exchange area |
21m² |
Fin type |
|
21 |
Cooling tower |
Model |
LJR-30L |
Achievements |
0.75kW |
|
|
22 |
Circulating water pump |
Model |
IRG50-125A |
Achievements |
1.1kW |
|
|
Flow |
14.5m³/h |
Speed |
2900r/min |
|||
|
23 |
Motors |
Model |
YE3-225M-4 |
Quantity |
1 unit |
Double shaft output |
|
Rated speed |
1480r/min |
Rated power |
45kW |
|||
|
24 |
Motors |
Model |
YE3-200L-4 |
Quantity |
1 unit |
|
|
Rated speed |
1480r/min |
Rated power |
30kW |
|||
|
25 |
Hydraulic pump |
Model |
A7V160 |
Quantity |
2 units |
|
|
Nominal displacement |
160ml/r |
Rated pressure |
31.5MPa |
|||
|
26 |
Hydraulic pump |
Model |
80YCY |
Quantity |
1 unit |
|
|
Nominal displacement |
80ml/r |
Rated pressure |
31.5MPa |
|||
FAQ
Q: How to choose between vertical and horizontal waste paper balers?
A: The horizontal baler is suitable for large-scale continuous production and can be automatically loaded with conveyor belts. Its processing capacity can reach 22-28 tons/hour and it operates fully automatically. Vertical packing machine is suitable for customers with small and medium-sized, limited space, and limited investment budget, and is economical and practical.
Q: What is the processing capacity of the waste paper baler?
A: There are significant differences among different models. Small equipment can reach about 0.5-2 tons/hour, medium-sized equipment can reach 6-8 tons/hour, and large equipment such as YW-200 can reach 22-28 tons/hour.
Q: What is the impact of block density on selling price?
A: High density packaging blocks (such as 550-600kg/m ³) have higher transportation efficiency and better pulp melting efficiency in paper mills. The higher the density, the higher the ton price is usually. The standard requires a density of ≥ 500kg/m ³.
Q: What are the main bundling methods for waste paper balers?
A: The bundling methods include jog, manual, continuous hitting, ball switch, foot switch, etc. The number of bundling lines is generally 4-5.
Q: How long is the usual delivery time for customization?
A: Standard models usually take 20-35 days; Customized models (special package size, voltage, etc.) require 45-90 days.
