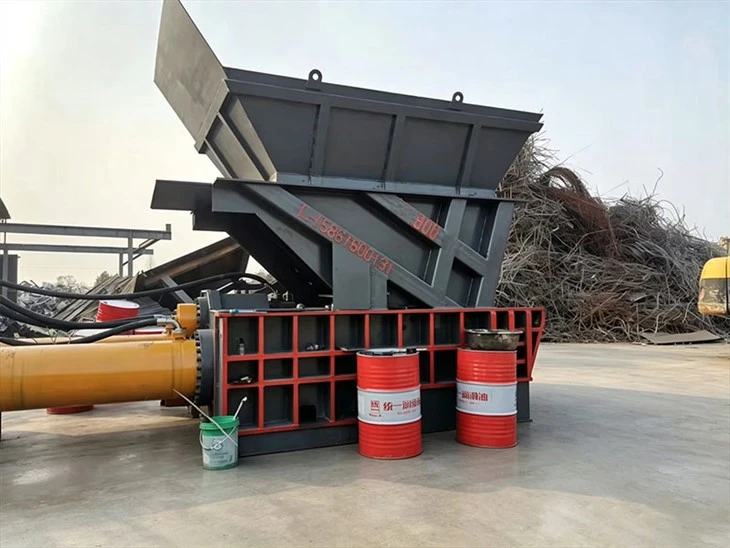

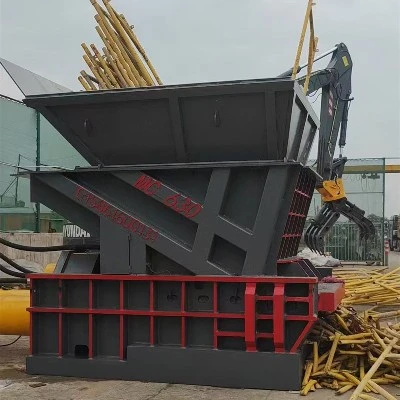

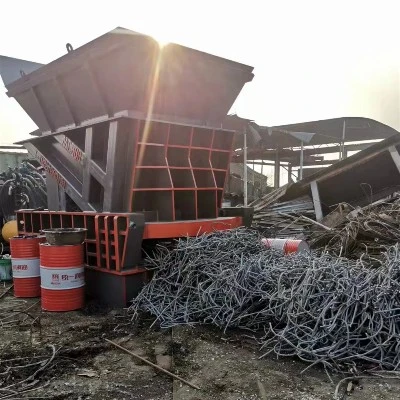

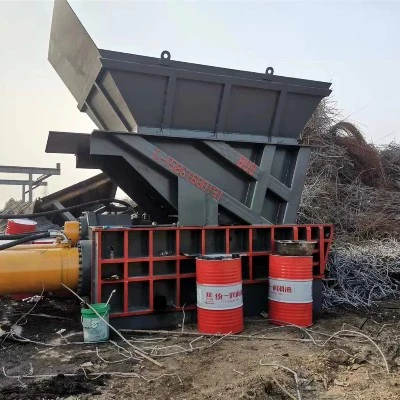

Heavy-Duty Container Shear: Maximize Scrap Metal Processing Efficiency & Reduce Operational Costs
In the highly competitive metal recycling and steel smelting industries, optimizing your scrap processing workflow is the key to maximizing profitability. Our industrial-grade container shear (also known as a container shear or scrap metal shear) is engineered to transform bulky, irregular metal waste into uniform, furnace-ready charges. Whether you are processing scrap steel, structural beams, or discarded automotive parts, this heavy-duty hydraulic shearing machine is designed to significantly reduce your transportation and smelting costs while boosting overall production efficiency.
Technical Parameters of Container Shear
|
Model |
Maximum shear force (ton) |
Cutting width (mm) |
Feeding port size (mm) |
Main motor power (KW) |
Capacity (t/h) |
|
JH-400 |
400 |
1400 |
2000×1400 |
2×37 |
4-6 |
|
JH-630 |
630 |
1600 |
2000×1400 |
2×55 |
6-8 |
|
JH-800 |
800 |
1600 |
2200×1600 |
3×55 |
8-12 |
|
JH-800D |
800 |
2000 |
2200×1600 |
3×55 |
15-20 |
|
JH-1000 |
1000 |
1800 |
2200×1600 |
4×55 |
12-15 |
|
JH-1250 |
1250 |
2000 |
2200×1800 |
4×55 |
15-18 |
|
JH-1500 |
1500 |
2000 |
2200×1800 |
5×55 |
18-22 |
High-Efficiency Continuous Cutting
Featuring a large, fully enclosed feed hopper, the machine allows for uninterrupted loading and simultaneous ejection of cut scrap. This continuous workflow eliminates the need for pre-compaction by lids, drastically improving your daily throughput.
Container Shear Robust & Durable Construction

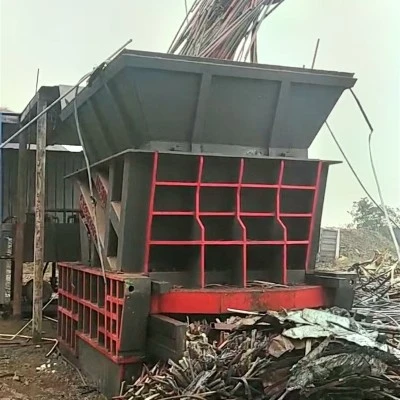

Industrial hydraulic cutting equipment Built with an ultra-tough structure and Hardox-wear plate covers on all inner surfaces, it easily handles high-strength, difficult-to-cut materials. The horizontal cutting design ensures the forces always tend towards the center, avoiding twisting forces and minimizing blade wear.
Container Shear Flexible Power & Operation
Available with integrated diesel engines for off-grid scrap yards or standard electric motors for plant facilities. The PLC automatic control system and optional remote control allow a single operator to efficiently manage loading, cutting, and removal, greatly reducing labor costs.
|

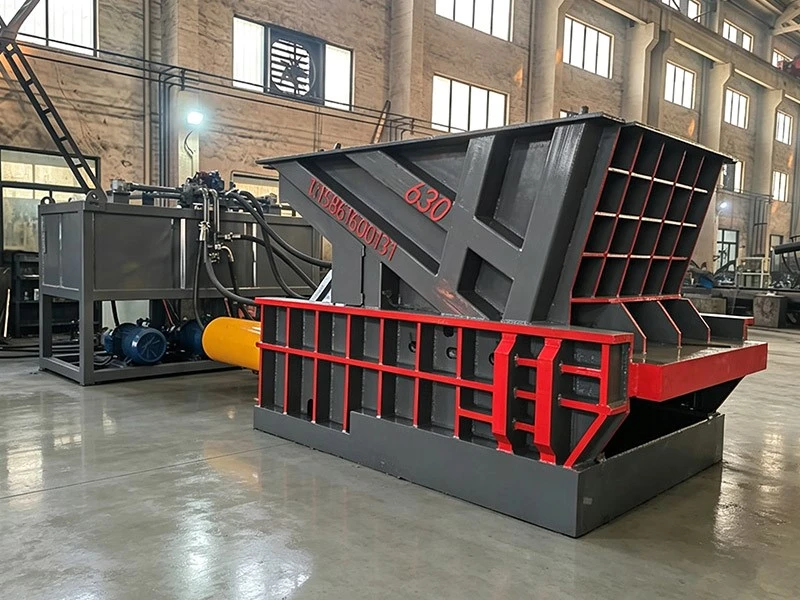

Jiangyin Hangli Technology Co., Ltd JH-630 Container Shear |
||||||
|
No. |
Technical Parameter |
REMARKS |
||||
|
1 |
Cutting cylinder |
Model |
YG400/280-1250 |
Cutting force |
3140KN*2 |
|
|
Stroke |
1250 MM |
Quantity |
2 |
|||
|
2 |
Press cylinder |
Model |
YG250/220-830 |
Pressure |
1226KN |
|
|
Stroke |
830 MM |
Quantity |
1 |
|||
|
3 |
Max cutting force |
6300KN |
|
|||
|
4 |
Max press force |
1226KN |
|
|||
|
5 |
Blade Length |
1600 MM |
|
|||
|
Cutting Height |
400 MM |
|||||
|
6 |
Press box size |
2650*1600*1750mm (L*W*H) |
|
|||
|
7 |
Hopper size |
3650*2400*700mm (L*W*H) |
||||
|
8 |
Capacity |
About 6-8 t/h (depends on material and operator skill) |
|
|||
|
9 |
Cooler |
Cooling is done through water cooling or air conditioning |
|
|||
|
10 |
Pressure system |
25 Mpa |
|
|||
|
11 |
motor |
55KW*2 |
|
|||
|
12 |
Pump |
A4V320*2 |
|
|||
|
13 |
Weight |
About42T |
|
|||
|
14 |
Control |
PLC Automatic+ touch screen +panel + remoter |
|
|||
|
15 |
Container needed |
1*40'FR+1*40'OT |
||||
|
16 |
Machine price |
PRICE: FOB SHANGHAI Delivery time: About 60 days after 30% deposit. Payment method: 30% deposit, 70% to be paid before shipment. |
||||
