Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of mobile container shear machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality mobile container shear machine at low price from our factory. Welcome to contact us for pricelist.
Typical Applications
Shearing scrap steel plates, structural steel (I-beams, channel steel, angle steel, round bars)
Processing scrap vehicles and demolition waste
Preparing furnace charge for smelters
Down-sizing oversized scrap for baling or shipping
Technical Parameters of Container Shear
|
Model |
Maximum shear force (ton) |
Cutting width (mm) |
Feeding port size (mm) |
Main motor power (KW) |
Capacity (t/h) |
|
JH-400 |
400 |
1400 |
2000×1400 |
2×37 |
4-6 |
|
JH-630 |
630 |
1600 |
2000×1400 |
2×55 |
6-8 |
|
JH-800 |
800 |
1600 |
2200×1600 |
3×55 |
8-12 |
|
JH-800D |
800 |
2000 |
2200×1600 |
3×55 |
15-20 |
|
JH-1000 |
1000 |
1800 |
2200×1600 |
4×55 |
12-15 |
|
JH-1250 |
1250 |
2000 |
2200×1800 |
4×55 |
15-18 |
|
JH-1500 |
1500 |
2000 |
2200×1800 |
5×55 |
18-22 |
Advantages： Why Container Shears Outperform Other Scrap Shears
Higher Efficiency with Continuous Feeding

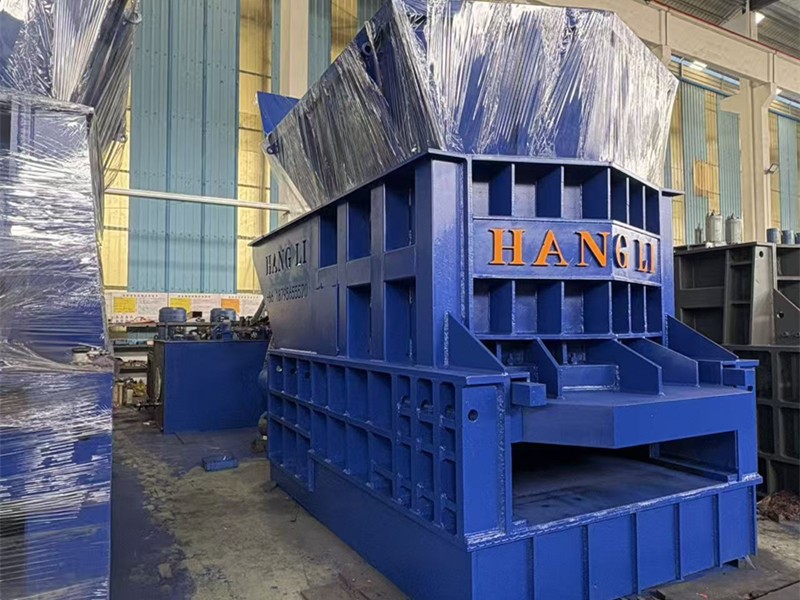

Unlike gantry shears that require stopping for each cut,High pressure hydraulic shears allow operators to continuously feed scrap into the box. This alone can increase productivity by 30–50% in high-volume operations.
Lower Operating Costs
Hydraulic drive systems consume less energy than mechanical alternatives and produce lower noise levels. The compact design reduces floor space requirements.
Unmatched Cutting Force for Heavy Scrap
With maximum cutting forces up to 1500 tons (1500 KN), Container-type scrap shear machines handle the toughest materials - including thick steel plates, structural beams, and even complete vehicle bodies.
|
Jiangyin Hangli Technology Co., Ltd JH-1000 Container Shear |
||||||
|
No. |
Technical Parameter |
REMARKS |
||||
|
1 |
Cutting cylinder |
Model |
D400/d320-S1210 |
Cutting force |
3300KN*3 |
|
|
Stroke |
1210 MM |
Quantity |
3 |
|||
|
2 |
Press cylinder |
Model |
D250/d180-S780 |
Pressure |
1250KN |
|
|
Stroke |
780MM |
Quantity |
2 |
|||
|
3 |
Max cutting force |
10000KN |
|
|||
|
4 |
Max press force |
2500KN |
|
|||
|
5 |
Blade Length |
1800 MM |
|
|||
|
Cutting Height |
400 MM |
|||||
|
6 |
Press box size |
2700*1800*2000mm (L*W*H) |
|
|||
|
7 |
Hopper size |
3650*2600*700mm (L*W*H) |
||||
|
8 |
Capacity |
About 12-15 t/h (depends on material and operator skill) |
|
|||
|
9 |
Cooler |
Cooling is done through water cooling or air conditioning |
|
|||
|
10 |
Pressure system |
25 Mpa |
|
|||
|
11 |
motor |
55KW*4 |
|
|||
|
12 |
Pump |
A4V320*4 |
|
|||
|
13 |
Weight |
About60T |
|
|||
|
14 |
Control |
PLC Automatic+ touch screen +panel + remoter |
|
|||
|
15 |
Container needed |
1*40'FR+1*40'OT+1*20'GP |
||||
