Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of box shearing machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality box shearing machine at low price from our factory. Welcome to contact us for pricelist.

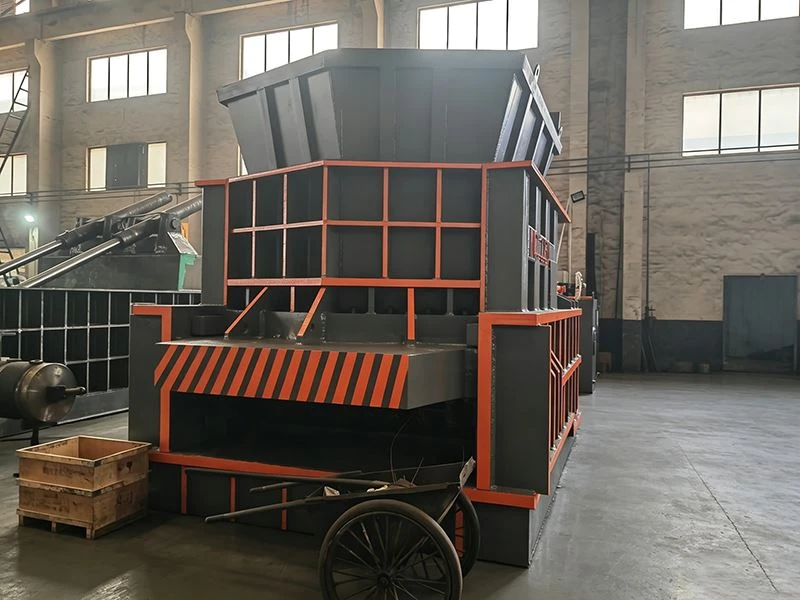

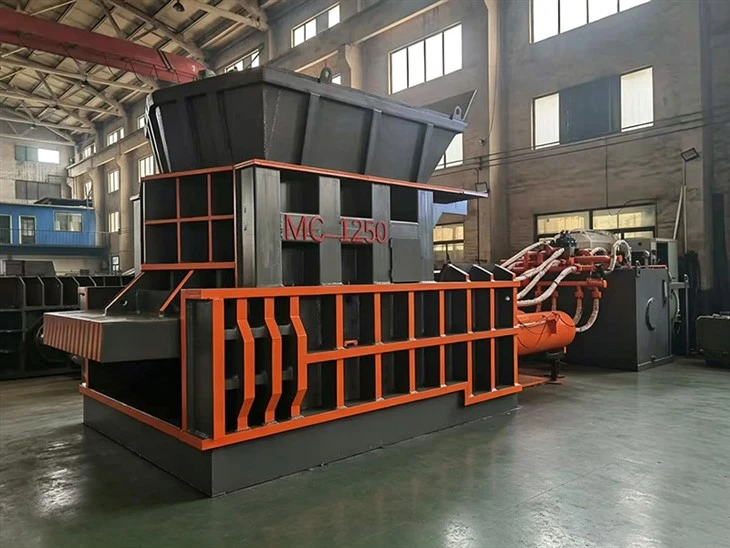

Characteristics of Container Shear Machine
Closed box silo (core feature, different from Alligator shear)
Top feeding, with built-in pre compression bin; Loose, ultra long, and irregular waste materials are put into the box, first compacted by a pressing oil cylinder, and then pushed to the cutting edge. Preventing waste from splashing, the safety is significantly better than that of open crocodile scissors.
Horizontal shear structure
Horizontal advancement of the moving blade and fixed blade; The shear force is concentrated towards the center, reducing the twisting and eccentric deformation of the frame, and ensuring more stable operation.
Integrated multi cylinder linkage
Sequential action: feeding → preloading → pushing → shearing → return, fully automatic cycle.
Core Performance Characteristics
Huge Shear Force
The shear force is generally 400-1500 tons, which can directly shear scrapped steel plates, I-beams, channel steels, thick steel plates, and vehicle shells; One cut molding, replacing flame cutting.
Can handle oversized and cluttered materials
The container has a large capacity and can be directly loaded into the entire scrapped container or long steel structural components; Suitable for mixed, bent, irregular heavy scrap metal.
Pre compression+shear integration
Firstly, compact the loose waste material, increase the single shear rate, and ensure that the discharge material has a regular shape for easy packaging, transportation, and furnace smelting.
Safety and Environmental Protection
Closed box with less metal debris splashing; Pure hydraulic cold cutting, no flame, no exhaust gas, less smoke and dust, more environmentally friendly than gas cutting.
High degree of automation
Standard PLC automatic control system, supporting manual/automatic mode; A single steel grabbing machine can complete the entire set of operations by loading materials, operated by a single person.
Wear-resistant and durable
The inner wall of the warehouse is embedded with Hardox wear-resistant steel plate; The cutting blade is made of alloy steel and can be flipped on all four sides to extend the tool life.
Compact footprint and easy installation
The whole machine has high integration, and most models do not require complex concrete foundations; Some can be made into containerized integrated units for easy transfer.
Brief Distinction Compared to Other Cutting Devices
Hydraulic Scrap Metal Cutting Equipment
Equipped with a closed storage bin and preloading, it can handle large and messy heavy waste (scrapped containers, whole vehicles, steel structures)
Alligator shear
Open jaw, suitable for small and medium-sized scrap metal, sheet metal, aluminum, etc.
Gantry shear
Different feeding methods are generally suitable for regular boards, and the box pre pressing structure is not as good as the container shear
Technical Parameters of Container Shear
|
Model |
Maximum shear force (ton) |
Cutting width (mm) |
Feeding port size (mm) |
Main motor power (KW) |
Capacity (t/h) |
|
JH-400 |
400 |
1400 |
2000×1400 |
2×37 |
4-6 |
|
JH-630 |
630 |
1600 |
2000×1400 |
2×55 |
6-8 |
|
JH-800 |
800 |
1600 |
2200×1600 |
3×55 |
8-12 |
|
JH-800D |
800 |
2000 |
2200×1600 |
3×55 |
15-20 |
|
JH-1000 |
1000 |
1800 |
2200×1600 |
4×55 |
12-15 |
|
JH-1250 |
1250 |
2000 |
2200×1800 |
4×55 |
15-18 |
|
JH-1500 |
1500 |
2000 |
2200×1800 |
5×55 |
18-22 |
Application Scenarios of Container Shear Machine
Dismantling of scrapped cars, disposal of scrap steel from shipyards, recycling of steel structures from building demolitions, pre-treatment of raw materials for steel mills, and development of renewable resource industrial parks.
|

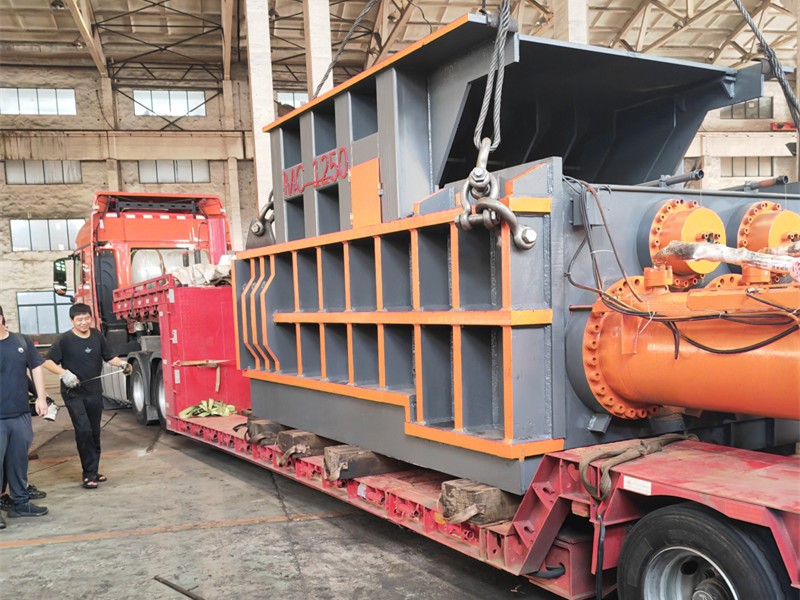

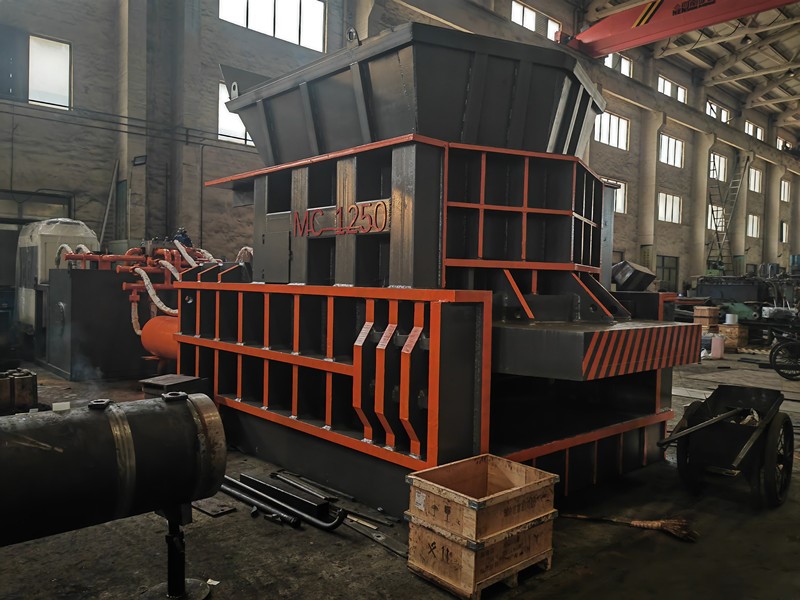

Jiangyin Hangli Technology Co., Ltd JH-1250 Container Shear |
||||||
|
No. |
Technical Parameter |
REMARKS |
||||
|
1 |
Cutting cylinder |
Model |
D400/d320-S1210 |
Cutting force |
3300KN*3 |
|
|
Stroke |
1210 MM |
Quantity |
3 |
|||
|
2 |
Press cylinder |
Model |
D250/d180-S780 |
Pressure |
1250KN |
|
|
Stroke |
780MM |
Quantity |
2 |
|||
|
3 |
Max cutting force |
12500KN |
|
|||
|
4 |
Max press force |
2500KN |
|
|||
|
5 |
Blade Length |
2000 MM |
|
|||
|
Cutting Height |
400 MM |
|||||
|
6 |
Press box size |
2700*1800*2000mm (L*W*H) |
|
|||
|
7 |
Hopper size |
3650*2600*700mm (L*W*H) |
||||
|
8 |
Capacity |
About 15-20 t/h (depends on material and operator skill) |
|
|||
|
9 |
Cooler |
Cooling is done through water cooling or air conditioning |
|
|||
|
10 |
Pressure system |
25 Mpa |
|
|||
|
11 |
motor |
55KW*4 |
|
|||
|
12 |
Pump |
A4V320*4 |
|
|||
|
13 |
Weight |
About80T |
|
|||
|
14 |
Control |
PLC Automatic+ touch screen +panel + remoter |
|
|||
|
15 |
Container needed |
1*40'FR+1*40'OT+1*20'GP |
||||
