Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of scrap metal recycling container shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality scrap metal recycling container shear at low price from our factory. Welcome to contact us for pricelist.
Why choose our Metal recycling container shear equipment?
Fully enclosed enclosure: prevents splashing and ensures safer operation.
Step by step pressing: Smooth feeding and more uniform cutting.
PLC intelligent control: One click automation, saving manpower and effort.
Hydraulic system energy saving: energy consumption reduced by about 30%.
Wear resistant blade: High quality blade or H13 blade, with a longer lifespan.
No need to dig deep into the foundation: ready to use upon landing, quick installation.

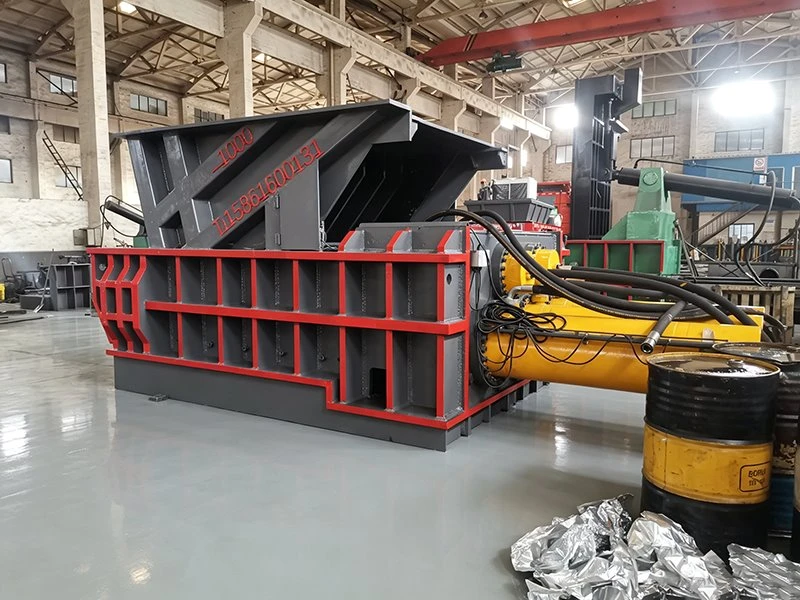

Container shear
Technical Parameters of Container Shear
|
Model |
Maximum shear force(ton) |
Cutting width(mm) |
Feeding port size(mm) |
Main motor power(KW) |
Capacity(t/h) |
|
JH-400 |
400 |
1400 |
2000×1400 |
2×37 |
4-6 |
|
JH-630 |
630 |
1600 |
2000×1400 |
2×55 |
6-8 |
|
JH-800 |
800 |
1600 |
2200×1600 |
3×55 |
8-12 |
|
JH-800D |
800 |
2000 |
2200×1600 |
3×55 |
15-20 |
|
JH-1000 |
1000 |
1800 |
2200×1600 |
4×55 |
12-15 |
|
JH-1250 |
1250 |
2000 |
2200×1800 |
4×55 |
15-18 |
|
JH-1500 |
1500 |
2000 |
2200×1800 |
5×55 |
18-22 |
Shear force: 400T -1500T (customizable)
Feed inlet: widened hopper, compatible with steel grabbing machine and feeding machine.
Material pressing method: stair pre pressing+main shear linkage
Control: PLC+touch screen+remote control optional
Applicable to: recycling stations, steel mills, dismantling plants, smelting plants
Container shear machine core Highlights
Continuous feeding without stopping, efficiency increased by 50%+
Thick manganese plate welding on the body, resistant to impact and deformation
Quick change design for vulnerable parts, making maintenance more worry free.
Container shear machine applicable materials and scenarios
Scrap metal,scrap steel,scrap iron,steel reinforcement,angle steel section
Car shell,fuel tank,lightweight metal material
Metal package block,iron sheet,color steel tile,aluminum copper profile
Steel mills, recycling stations, dismantling yards, packaging stations, smelting pretreatment
|
Jiangyin Hangli Technology Co., Ltd JH-400 Container Shear |
||||||
|
No. |
Technical Parameter |
REMARKS |
||||
|
1 |
Cutting cylinder |
Model |
YG320/220-1020 |
Cutting force |
2010X2 KN |
400 T |
|
Stroke |
1020 MM |
Quantity |
2 |
|||
|
2 |
Press cylinder |
Model |
YG250/160-750 |
Pressure |
1250KN |
125 T |
|
Stroke |
750 MM |
Quantity |
1 |
|||
|
3 |
Max cutting force |
4000KN |
|
|||
|
4 |
Max press force |
1250KN |
|
|||
|
5 |
Blade Length |
1400 MM |
|
|||
|
Cutting Height |
400 MM |
|||||
|
6 |
Press box size |
2600*1400*1882mm (L*W*H) |
|
|||
|
7 |
Hopper size |
3762*2000*900mm (L*W*H) |
||||
|
8 |
Capacity |
About 4-7 t/h (depends on material and operator skill) |
|
|||
|
9 |
Cooler |
Cooling is done through water cooling or air conditioning |
|
|||
|
10 |
Pressure system |
25 Mpa |
|
|||
|
11 |
Diesel engine |
37KW*2=74KW |
|
|||
|
12 |
Pump |
A4V250*2 |
|
|||
|
13 |
Weight |
About 26-27T |
|
|||
|
14 |
Control |
PLC Automatic+ touch screen +panel + remoter |
|
|||
|
15 |
Container needed |
1*40'FR |
||||
|
16 |
Machine price |
PRICE: $ FOB SHANGHAI Delivery time: About 60 days after 30% deposit. Payment method: 30% deposit, 70% to be paid before shipment. |
||||
