Hydraulic metal baler is the core equipment in the field of scrap steel recycling and renewable resource processing. It is mainly used to extrude various types of metal waste (such as scrap steel, scrap aluminum, scrap copper, steel shavings, scrapped car shells, etc.) into high-density, regular shaped qualified furnace materials in a cold state.
Send Inquiry
Description

Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of scrap metal baler machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality scrap metal baler machine at low price from our factory. Welcome to contact us for pricelist.



Hydraulic metal baler is the core equipment in the field of scrap steel recycling and renewable resource processing. It is mainly used to extrude various types of metal waste (such as scrap steel, scrap aluminum, scrap copper, steel shavings, scrapped car shells, etc.) into high-density, regular shaped qualified furnace materials in a cold state. This process can significantly reduce the transportation and smelting costs of materials, and improve the efficiency of furnace feeding.



Core Technology and Structural Characteristics of Hydraulic Metal Strapping Machine

Modern hydraulic metal strapping machines generally adopt the following technical configurations to meet the high-strength and continuous industrial operation requirements:

Metal strapping machine hydraulic drive system

All actions are driven by the hydraulic system, running smoothly and under high pressure. Some models use three-way compression technology to ensure that the package is subjected to more uniform force during the molding process, resulting in higher density and better molding effect.

Intelligent control system for metal strapping machine

Heavy Duty Metal Baler machines are widely equipped with PLC programmable controller and touch screen, supporting multiple operation modes such as manual, semi-automatic, fully automatic, and remote control. The system can monitor key parameters such as oil temperature, pressure, and current in real time, and has automatic fault alarm function for quick diagnosis and maintenance.

High wear-resistant structure of metal strapping machine

The key load-bearing components such as compression chamber and head are usually made of imported alloy steel or thickened wear-resistant steel plate, and undergo special strengthening treatment to resist the strong impact of metal compression, effectively extending the service life of the equipment and reducing the risk of deformation and cracking of the machine body.

Flexible installation method

The Aluminum Recycling Machine equipment does not require foot screws to fix, and a diesel engine can be configured as a power source in areas without power supply, making deployment flexible.

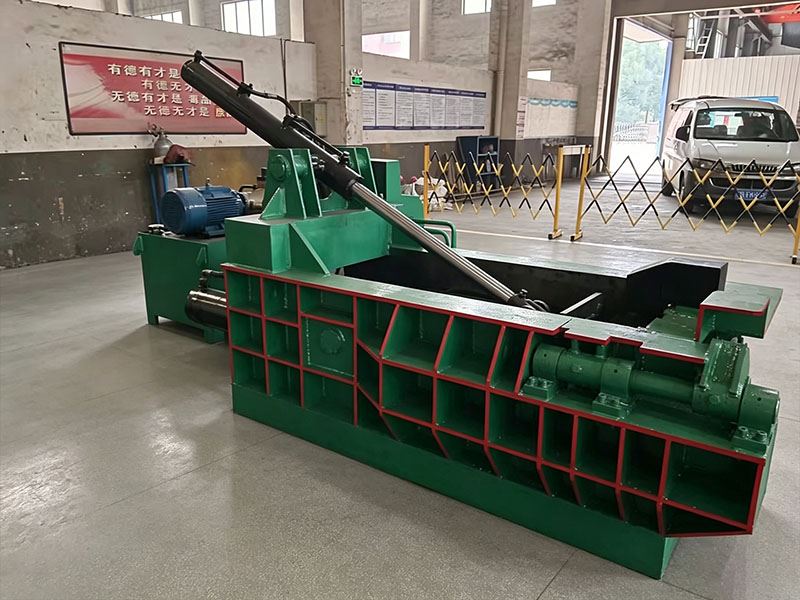

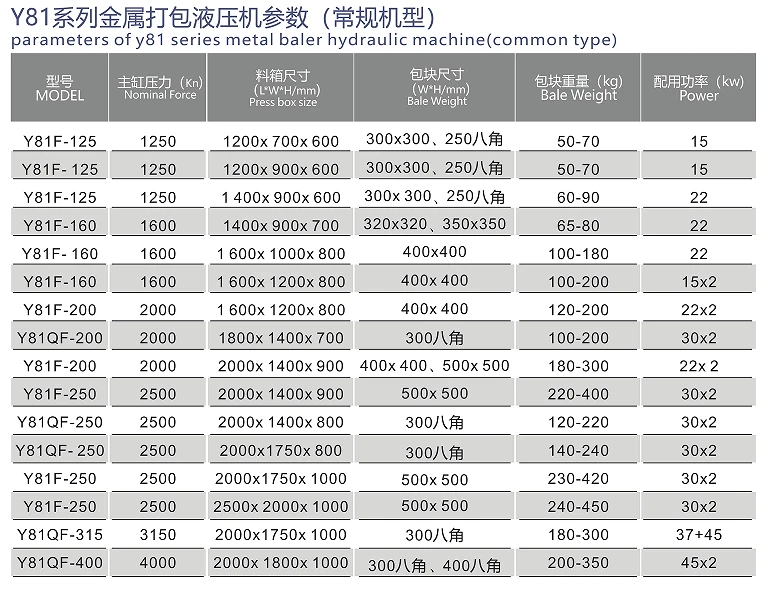

Scrap metal baler machine

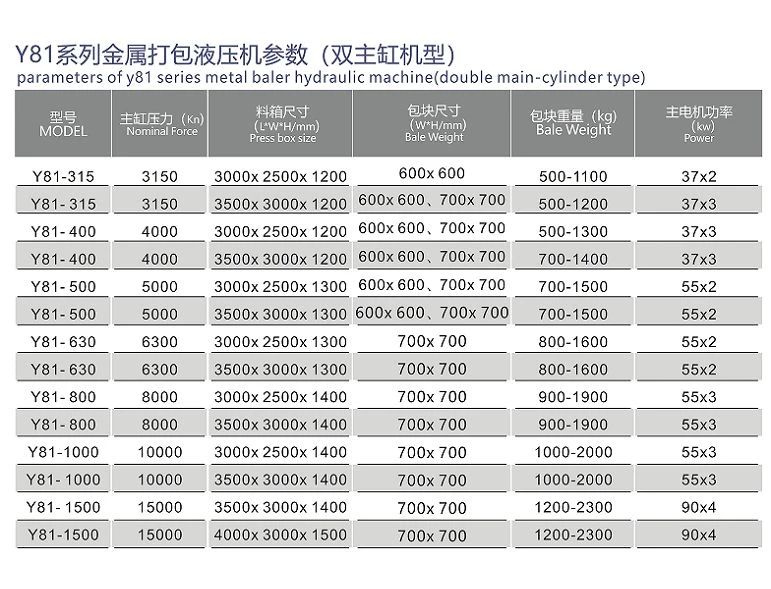

Scrap Metal Baling Press



Technical Parameters of Y81F-125 Hydraulic Metal Baler Machine



Number

Parameter Name and Content

Remarks

1

Main pressure cylinder

Model

YG240/160

quantity

1 piece

125 tons

Nominal thrust

1250kN

trip

420mm



2

Side pressure cylinder

Model

YG240/160

quantity

1 piece

125 tons

Nominal thrust

1250kN

trip

900mm



3

Door cover cylinder

Model

YG125/80

quantity

1 piece

30 tons

Nominal thrust

300kN

trip

1050mm



4

Flip-flop oil cylinder

Model

YG110/75

quantity

1 piece

7.5 tons

Nominal thrust

75kN

trip

330mm



5

work pressure

≤25MPa (Folding pressure 8MPa)

Rated 28MPa

6

Material box (compression chamber)

1200x700x600mm

Length x Width x Height

7

Package section size x shortest length

(300x300)x300mm



8

Package density (steel)

≤2200/m³



9

Single idle cycle time

About 85 seconds



10

Operation method

Hand to body integration, remote control operation



11

Productivity

About 7-15 packs per hour



12

Packing method

Flip out the bag on the side



13

Power Specifications

380V/3P 50Hz



14

Total equipment power

18.9kW



15

Fuel tank capacity

600L

2 buckets

16

floor area

4000x3000mm



17

cooler

Model

FCE-20

rated power

0.25kW

Air cooled

18

motor

Model

YE3-180M-4

quantity

1 unit



Rated speed

1470r/min

rated power

18.5kW



19

hydraulc pump

Model

80YCY14-1B

quantity

1 unit



Nominal displacement

80ml/r

rated pressure

31.5MPa
