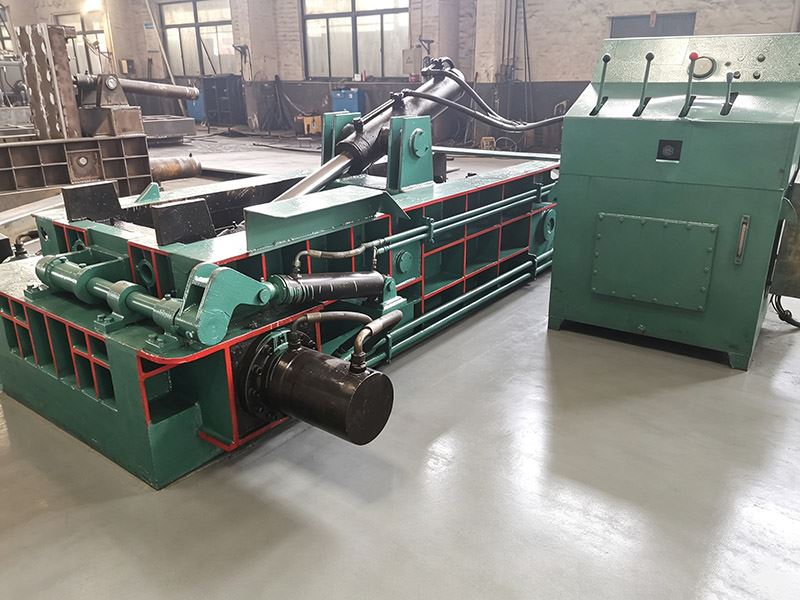

Copper Scrap Baler Machine: Precise Compression and Cost Reduction for High Value Metal Recycling
In the non-ferrous metal recycling and recycling industry chain, the waste copper baler (also known as the waste copper hydraulic baler or copper chip compactor) is the core equipment for improving the profit per ton of copper and optimizing logistics costs. This series of equipment is designed specifically for high-value materials such as scrap copper, copper chips, copper tubes, copper wires, etc. It achieves high-density forming through a high-precision hydraulic system, ensuring that the packaging blocks do not loosen or oxidize during transportation and furnace feeding, maximizing your investment return rate.
High Compression Ratio and Dense Forming
Adopting three-way compression or dual main compression technology, the side pressure and main pressure work together to ensure that there are no gaps inside the copper chips/copper tube packaging blocks, and the packaging density can reach 1.8-2.5 t/m ³ (depending on the shape of the copper material).
High density packaging blocks can significantly reduce the transportation cost of a single ton of logistics, while reducing oxidation losses during smelting and increasing furnace feeding speed and metal recovery rate.
The contact surfaces of the material box and pressure head are lined with high wear-resistant alloy plates or subjected to high-frequency quenching treatment, with a hardness of HRC ≥ 55, significantly extending the replacement cycle of vulnerable parts and reducing unplanned downtime.
Industry Application Scenarios
Scrap copper recycling station/sorting center
Processes waste copper pipes, copper wires, and copper plates collected from society, compresses them into regular blocks, and facilitates long-distance transportation and storage.
Copper smelters/foundries
Internal waste copper recycling, achieving the goal of "waste not leaving the factory, directly returning to the furnace", reducing procurement costs and oxidation losses.
Wire and cable factory
Deals with copper shavings and scraps in the production process, improves metal recovery rate, and reduces resource waste.
Renewable resource processing base
With the cooperation of whole line sorting equipment, achieve large-scale and automated packaging, and improve overall production line efficiency.
Y81F-250 Technical Specifications of the Metal Baler Machine
|
Serial number |
Reference nouns and content |
Note |
||||
|
1 |
Main pressure cylinder |
Model |
YG340/220 |
Quantity |
2 pieces |
250 tons x 2 |
|
Public Praise for Push |
2500kN |
Journey |
730mm |
|||
|
2 |
Side-pressing cylinder |
Model |
YG240/160 |
Quantity |
2 pieces |
220 tons |
|
Public Praise for Push |
1100kNx2 |
Journey |
2070mm |
|||
|
3 |
Door cover oil tank |
Model |
YG240/160 |
Quantity |
1 piece |
110 tons |
|
Public Praise for Push |
1100kN |
Journey |
2000mm |
|||
|
4 |
Flip the oil tank |
Model |
YG140/75 |
Quantity |
1 piece |
12 tons |
|
Public Praise for Push |
120kN |
Journey |
320mm |
|||
|
5 |
Hydraulic system operating pressure |
≤ 25MPa (packet flipping pressure 8MPa). |
Rated at 28MPa |
|||
|
6 |
Specifications of the material box (compression chamber). |
2500x2000x1000mm |
Length x width x height |
|||
|
7 |
The cross-sectional size of the block x the shortest length |
(500x500)x600mm |
||||
|
8 |
Block density (steel) |
≤2200/m³ |
||||
|
9 |
Single no-load cycle time |
About 90 seconds |
||||
|
10 |
Operating methods |
Manual and automatic control, remote control |
||||
|
11 |
Production efficiency |
About 7-15 packs per hour |
||||
|
12 |
Methods of Dispute Resolution |
Flipped forward and got the bag |
||||
|
13 |
Power specifications |
380V/3P 50Hz |
||||
|
14 |
Total equipment power |
60.95kW |
||||
|
15 |
Fuel tank capacity |
2350L (with patented air cooling, power 0.15kW) |
10 barrels |
|||
|
16 |
Land area |
6000x5500mm |
||||
|
17 |
Cooler |
Model |
FCE-65 |
Rated power |
0.8kW |
Air-cooled type |
|
18 |
Motors |
Model |
YE3-200L-4 |
Quantity |
2 units |
|
|
Rated speed |
1470r/min |
Rated power |
30kW |
|||
|
19 |
Hydraulic pump |
Model |
A7V160 |
Quantity |
2 units |
|
|
Nominal displacement |
160ml/r |
Rated pressure |
31.5MPa |
|||
