Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of shearing machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality shearing machine at low price from our factory. Welcome to contact us for pricelist.
Alligator Shear: Powerful, Versatile Scrap Metal Cutting Solutions
Hydraulic Alligator Shear - Cut Through Scrap Metal with Precision and Power
Ideal for rebar, pipe, angle iron, and structural steel. Capacities from 63 to 630 tons of cutting force for recycling yards, fabrication shops, and demolition sites worldwide.
What Is an Alligator Shear?
An alligator shear - also known as a crocodile shear or lever shear - is a heavy-duty metal-cutting machine with a hinged jaw that opens and closes like an alligator's mouth.

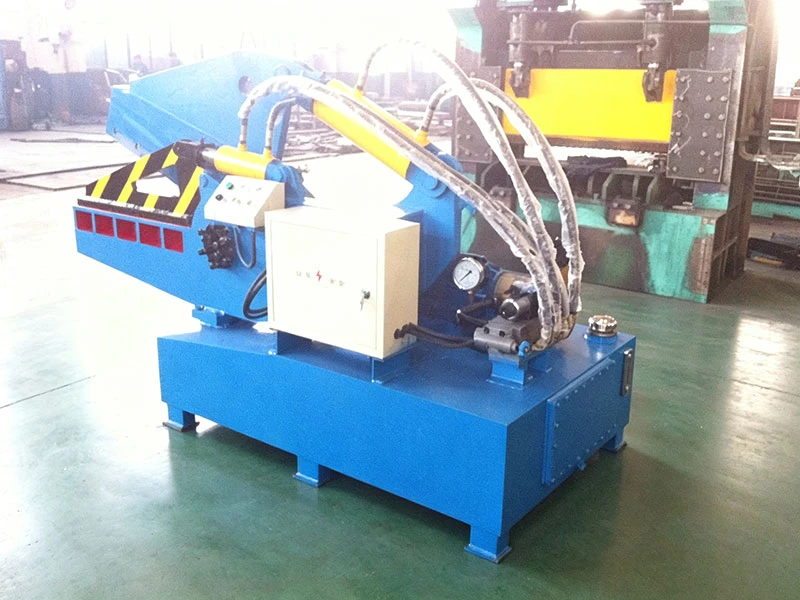

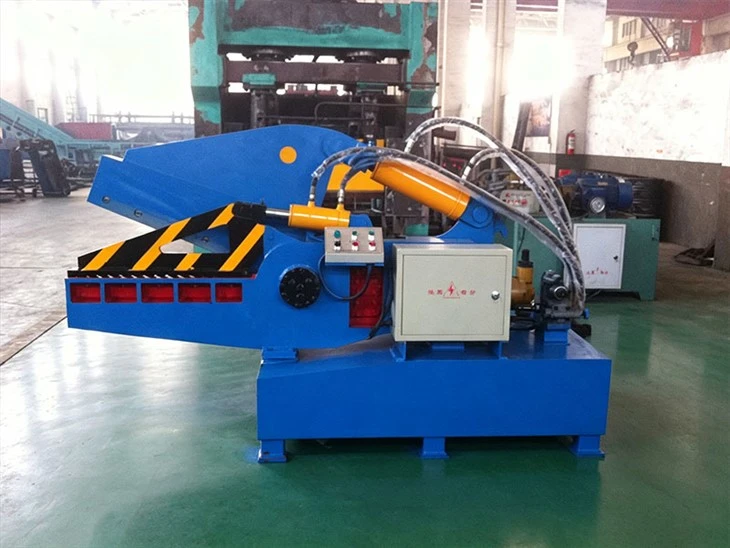

Our Hydraulic Alligator Shear is engineered for cutting scrap metal, copper and aluminum. It is purpose-built to process long metal stock and assorted scrap materials such as rebar, pipes, angle iron, structural profiles, as well as light- to medium-gauge steel.
Technical Parameters of Q43-63 Alligator Shearing Machine
|
Serial number |
Parameter content |
Remarks |
||||
|
1 |
Shear cylinder |
model |
YG125/80 |
Itinerary |
250mm |
63tons |
|
Maximum shear force |
630kN |
quantity |
1piece |
|||
|
2 |
Pressure oil cylinder |
model |
YG80/50 |
Itinerary |
105mm |
15tons |
|
Maximum press force |
150kN |
quantity |
1piece |
|||
|
3 |
Working pressure of hydraulic system |
≤25MPa |
|
|||
|
4 |
Blade length |
600mm |
||||
|
5 |
Maximum mouth opening |
280mm |
||||
|
6 |
Cutting range: Root position of cutting edge |
Round steel: 25mm, square steel: 25x25mm, Steel plate: 12x200mm |
Root position of the blade |
|||
|
7 |
Operation method |
Manual feeding, electronic control operation |
||||
|
8 |
Number of Cuts |
5-8 times/minute |
Empty load |
|||
|
9 |
Power Specifications |
380V/3P,50Hz |
||||
|
10 |
host power |
7.5kW |
||||
|
11 |
Fuel tank capacity |
230L |
1 bucket |
|||
|
12 |
floor area |
3500x1200mm |
||||
|
13 |
motor |
model |
YE3-132M-4 |
quantity |
1 unit |
|
|
Rated speed |
1440r/min |
rated pow |
7.5kW |
|||
|
14 |
Hydraulic pump |
model |
25YCY14-1B |
quantity |
1 unit |
|
|
rated flow |
25ml/r |
rated pressure |
31.5MPa |
|||
