Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty alligator shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality heavy duty alligator shear at low price from our factory. Welcome to contact us for pricelist.
Alligator shearing machine (also known as alligator shear or crocodile mouth shearing) is a hydraulic driven metal shearing device, named after its structural principle, which is similar to the opening and closing action of the upper and lower jaws of crocodiles. It is mainly used in metal recycling and processing plants, scrap car dismantling yards, scrap steel plants, and smelting and casting industries. It is used for cold cutting of various shapes of steel (such as round steel, square steel, channel steel, angle steel, I-beam) and metal structural components to process them into qualified furnace materials.
Working Principle and Structure

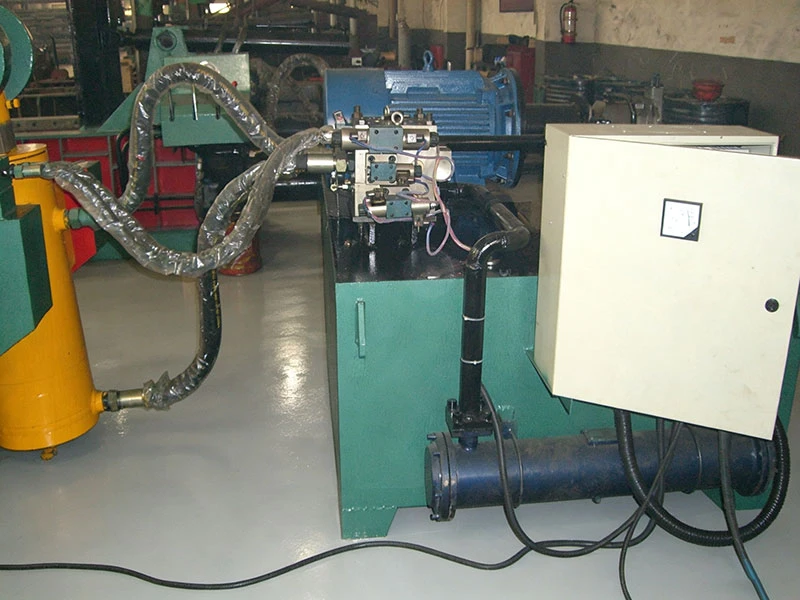

The alligator shear machine adopts a hydraulic transmission system, and the core power source consists of hydraulic pumps, oil cylinders, valve groups, and oil tanks. When working, the metal material to be cut is first locked and fixed by the pre pressing device (pressing cylinder), and then the main pressure cylinder drives the moving blade (upper blade) to move towards the fixed blade (lower blade), achieving metal cutting operation under strong cutting pressure.
Main Technical Parameters of Alligator Shear Machine
Alligator shear machine cutting force
Ranging from 63 tons to 400 tons, divided into 8 levels to meet the processing needs of enterprises of different scales.
Crocodile cutting machine blade length
Covering various specifications such as 400mm to 1500mm. Among them, models with blade sizes above 700mm are particularly suitable for cutting large waste materials such as scrapped cars.
Crocodile Shear Power System
Typically equipped with motors ranging from 7.5kW to 44kW, some models support diesel engine drive to adapt to non powered environments.
Operation Mode and Characteristics of Alligator Shear Machine
Alligator shear machine operation mode
Supports three modes: jog, semi-automatic, and fully automatic. In fully automatic mode, the machine can automatically and continuously perform the cyclic action of "lowering the clamping device for clamping - cutting the scissor head - lifting the clamping device - lifting the scissor head", greatly improving work efficiency.
Advantages of hydraulic transmission in alligator shear machines
Compared with mechanical transmission shearing machines, hydraulic transmission has the advantages of small volume, light weight, low inertia, low noise, smooth operation, convenient operation, large shearing section, and easy implementation of overload protection.
Easy installation
The device does not require foot screws for installation, making it easy to fix.
Safety Operating Procedures for Alligator Shear Machine
To ensure operational safety, the use of alligator shear machines must strictly follow the following specifications:
- Special personnel operation: The Shear aluminum scrap equipment should be operated by designated personnel, and untrained personnel are not allowed to use it arbitrarily.
- Material restrictions: It is prohibited to cut unannealed steel parts, cast iron parts, soft metal parts, thin workpieces, workpieces with a length less than 100 millimeters, and workpieces exceeding the length of scissors.
- Safe distance: During operation, the human body is not allowed to approach the transmission part and blade of the equipment to prevent the material from lifting and injuring people.
- Standardized feeding: When cutting, the material should be cut as close to the inside of the knife as possible. When cutting shorter materials, it is strictly prohibited to use handheld workpieces for feeding. Special clamps must be used for feeding.
- Prohibition of illegal operations: During equipment operation, operators are not allowed to leave their posts without authorization; It is strictly prohibited to press materials with hands or feet inside the material box; Do not repair or touch moving parts with your hands while the machine is running.
Technical Parameters of Q43-400 Alligator Shearing Machine
|
Serial number |
Parameter content |
Remarks |
||||
|
1 |
Shear cylinder |
model |
YG320/220 |
Itinerary |
485mm |
4000tons |
|
Maximum shear force |
4000kN |
quantity |
1piece |
|||
|
2 |
Pressure oil cylinder |
model |
YG160/10 |
Itinerary |
295mm |
50tons |
|
Maximum press force |
700kN |
quantity |
1piece |
|||
|
3 |
Working pressure of hydraulic system |
≤22MPa |
|
|||
|
4 |
Blade length |
1500mm |
||||
|
5 |
Maximum mouth opening |
660mm |
||||
|
6 |
Cutting range: Root position of cutting edge |
Round steel: 80mm, square steel: 70x70mm, Steel plate: 50x200mm |
Root position of the blade |
|||
|
7 |
Operation method |
Manual feeding, electronic control operation |
||||
|
8 |
Number of Cuts |
6-10 times/minute |
Empty load |
|||
|
9 |
Power Specifications |
Customized according to requirements |
||||
|
10 |
host power |
44kW |
||||
|
11 |
Fuel tank capacity |
1900L |
8 bucket |
|||
|
12 |
floor area |
7000x3000mm |
||||
|
13 |
cooler |
Heat exchange area 10m ² |
||||
|
14 |
motor |
model |
YE3-200L-4 |
quantity |
2 unit |
|
|
Rated speed |
970r/min |
rated pow |
22kW |
|||
|
15 |
Hydraulic pump |
model |
160YCY14-1B |
quantity |
2 unit |
|
|
rated flow |
160ml/r |
rated pressure |
31.5MPa |
|||
