Steel Alligator Shear

Steel Alligator Shear

Alligator Shear specializes in two major areas: scrap metal recycling and rough processing at construction sites. Its biggest feature is high efficiency and strong power, mainly used for "cold state" cutting and size reduction of long strip metals.
Send Inquiry
Description

Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of steel alligator shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality steel alligator shear at low price from our factory. Welcome to contact us for pricelist.



Alligator Shear specializes in two major areas: scrap metal recycling and rough processing at construction sites. Its biggest feature is high efficiency and strong power, mainly used for "cold state" cutting and size reduction of long strip metals.

The core task of Alligator Shear is to cut various shaped and bulky scrap metals into "qualified furnace materials" of uniform size that are easy to transport and melt into the furnace.

Alligator Shear cutting objects: can handle various profiles such as round steel, square steel, angle steel, I-beam, steel plate, steel pipe, as well as steel bars, sheet metal, cables, and even the body structure of scrapped cars. For large crocodile clippers with a blade length of over 700mm, cutting scrapped cars is their specialty.

Core value: It can replace dangerous flame cutting, not only with higher efficiency, but also save a lot of labor and gas cutting costs. In waste disposal sites, it is often used in conjunction with large metal crushers to pre cut off parts that cannot be processed by the crusher, completing the "cleaning" work.

Application scenarios: metal recycling and processing plants, scrap car dismantling yards, scrap steel plants, smelting and casting enterprises

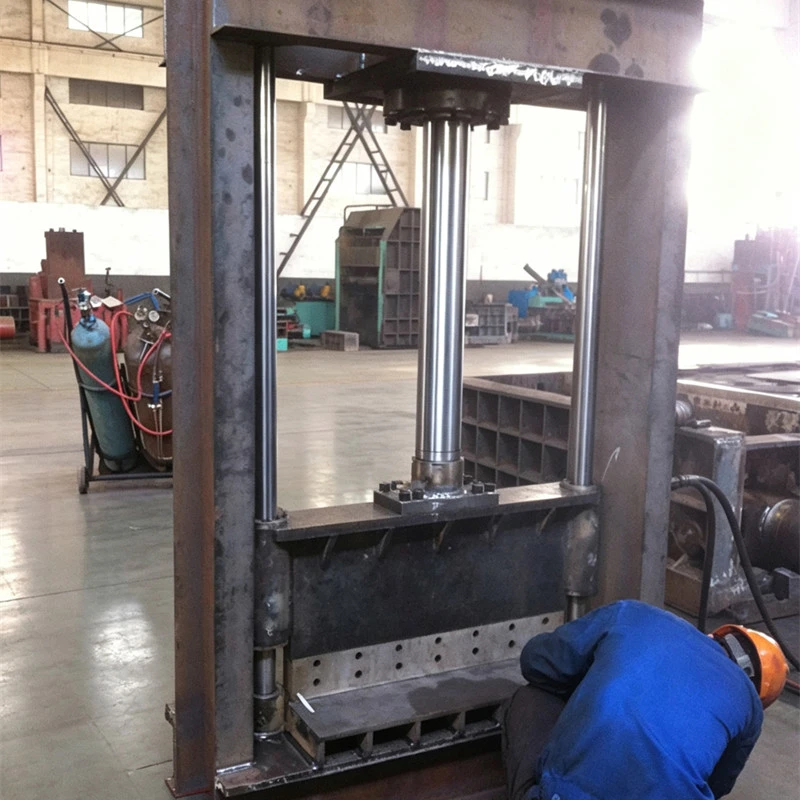

Alligator Shearlist



Technical Parameters of Q43-500 Alligator Shearing Machine



Serial number

Parameter content

Remarks

1

Shear

cylinder

model

YG340/220

Itinerary

485mm

5000tons

Maximum shear force

4000kN

quantity

1piece

2

Pressure oil cylinder

model

YG160/100

Itinerary

295mm

70tons

Maximum press force

700kN

quantity

1piece

3

Working pressure of hydraulic system

≤22MPa



4

Blade length

1600mm



5

Maximum mouth opening

660mm



6

Cutting range: Root position of cutting edge

Round steel: 90mm, square steel: 80x80mm,

Steel plate: 60x200mm

Root position of the blade

7

Operation method

Manual feeding, electronic control operation



8

Number of Cuts

6-10 times/minute

Empty load

9

Power Specifications

Customized according to requirements



10

host power

60kW



11

Fuel tank capacity

2500L

10 bucket

12

floor area

7000x3000mm



13

cooler

Heat exchange area 12m ²



14

motor

model

YE3-200L-4

quantity

2 unit



Rated speed

1470r/min

rated pow

30kW

15

Hydraulic pump

model

A7V160

quantity

2 unit



rated flow

160ml/r

rated pressure

31.5MPa



Heavy-duty Hydraulic Scrap Metal Shear Machine|One-Stop Solution

Our heavy-duty hydraulic scrap metal shear machine delivers a full one-stop solution for scrap metal pretreatment, covering equipment customization, production-line matching, installation commissioning, technical training and global after-sales service. The hydraulic scrap metal shear machine is engineered for high-intensity cold-cutting operations. It efficiently reduces bulky, irregular ferrous and non-ferrous scrap into uniform, furnace-ready material. Ideal for scrap yards, steel mills, vehicle dismantling facilities and demolition projects, it addresses common pain points including large-volume waste stockpiles, excessive transportation costs and complex on-site processing workflows.

Shear copper scrap
