Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic scrap shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality hydraulic scrap shear at low price from our factory. Welcome to contact us for pricelist.
Reducing energy consumption in steel production by up to 74% through efficient scrap preparation
Enabling better material segregation for higher-value sorted scrap
Cutting scrap to furnace-ready specifications for manufacturers
1. Scrap Metal Recycling Facilities
Processing mixed scrap for sorting and baling
Cutting oversized or irregular materials
Preparing scrap for shredders and furnaces
2. Steel Mills and Foundries
Preparing furnace-ready scrap charges
Cutting scrap to specifications for melting
3. Demolition and Construction Sites
Processing structural steel and rebar from demolished buildings
Cutting reinforcing bar and beams to manageable lengths
4. Automotive Dismantling and ELV Centers
Cutting vehicle body frames and components
Removing valuable parts and metals
5. Metal Fabrication Shops
Processing production offcuts and scrap
Cutting angle iron, pipe, and bar stock

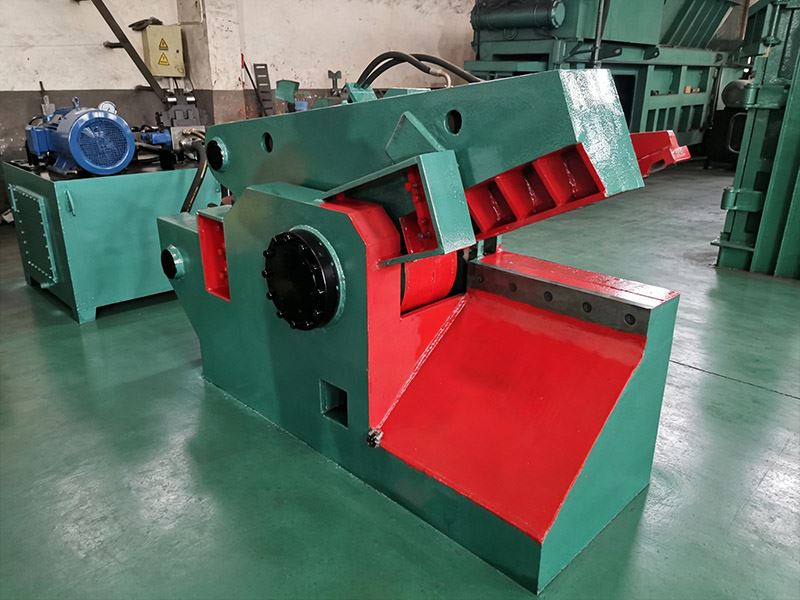

Technical Parameters of Q43-200 Alligator Shearing Machine
|
Serial number |
Parameter content |
Remarks |
||||
|
1 |
Shear cylinder |
model |
YG220/160 |
Itinerary |
315mm |
200tons |
|
Maximum shear force |
2000kN |
quantity |
1piece |
|||
|
2 |
Pressure oil cylinder |
model |
YG125/80 |
Itinerary |
140mm |
40tons |
|
Maximum press force |
400kN |
quantity |
1piece |
|||
|
3 |
Working pressure of hydraulic system |
≤25MPa |
|
|||
|
4 |
Blade length |
1000mm |
||||
|
5 |
Maximum mouth opening |
440mm |
||||
|
6 |
Cutting range: Root position of cutting edge |
Round steel: 50mm, square steel: 40x40mm, Steel plate: 30x200mm |
Root position of the blade |
|||
|
7 |
Operation method |
Manual feeding, electronic control operation |
||||
|
8 |
Number of Cuts |
6-10 times/minute |
Empty load |
|||
|
9 |
Power Specifications |
380V/3P,50Hz |
||||
|
10 |
host power |
22kW |
||||
|
11 |
Fuel tank capacity |
1000L |
4 bucket |
|||
|
12 |
floor area |
5500x2000mm |
||||
|
13 |
cooler |
Model GLC-5m ² Heat exchange area 5m ² |
finned |
|||
|
14 |
motor |
model |
YE3-200L2-6 |
quantity |
1 unit |
|
|
Rated speed |
970r/min |
rated pow |
22kW |
|||
|
15 |
Hydraulic pump |
model |
160YCY14-1B |
quantity |
1 unit |
|
|
rated flow |
160ml/r |
rated pressure |
31.5MPa |
|||
Product Advantages
Strong & Stable Hydraulic Power
Hydraulic transmission provides steady huge shearing force, smooth running, low noise and overload-protection function to avoid machine damage from overloading. Multiple tonnage options available from 63-400 tons to match different cutting demands.
Robust-Built & Cost-Effective
Reinforced all-steel welded frame resists deformation for long-time continuous industrial work. High-wear-resistant replaceable tool-steel blades lower maintenance cost and downtime. Compact footprint fits workshops and yards with limited space.
Flexible Operation & High Efficiency
Support manual, pedal or PLC automatic control modes, fast cycle cuts per minute. Optional diesel-driven version works well for sites without power supply. Simple structure for easy blade replacement and daily maintenance.
High-Standard Safety Design
Waste Plastic Cutting Machine Equipped with emergency stop, overload protection and safety interlock devices to secure operators during heavy-load cutting operations. Cold shearing without heat, no burning, no fume, keeps original metal material property.
