Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of metal bundles breaker in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality metal bundles breaker at low price from our factory. Welcome to contact us for pricelist.

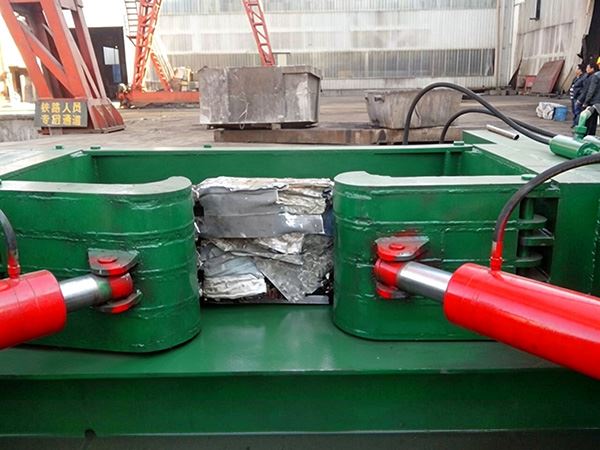

Hydraulic metal dismantling machine/pressure block decomposition machine: a specialized equipment for dismantling scrap steel, scrap iron, and steel bar pressure block packages, used in scenarios such as steel plants, smelters, docks, etc., to ensure the detection of impurities in the package blocks and ensure the content of scrap steel after dismantling.
The hydraulic dismantling machine is supplied with oil through a hydraulic plunger pump, which drives the hydraulic robotic arm to grab, squeeze, and separate the package blocks. The pressure is adjustable, and some models can be dismantled in one go.
Extremely low operation and maintenance costs: The entire Metal bundles breaker machine adopts hydraulic transmission, with a compact structure, no vibration, and low noise. During installation, there is no need for foot screws or complex foundations, making it extremely convenient to move and install. Low equipment failure rate, easy daily maintenance, significantly reducing operation and maintenance costs.
Flexible operation mode: supports multiple modes such as manual operation, PLC automatic control, or remote control. The integrated manual and automatic design makes operation easier, with strong stability and high safety factor.
Customization and high cost-effectiveness: Users can customize packaging specifications and sizes according to their actual needs. The Mechanical bundle unpacker equipment is equipped with reliable hydraulic and electrical components, and the overall performance price ratio is reasonable. It is a high-quality investment that saves manpower and reduces transportation costs.
Basic Parameters of Metal Bundles Dismantling Machine
|
Number |
Parameter Name |
Parameter Name |
Number |
Parameter Name |
Parameter Name |
|
|
1 |
Maximum tensile force |
1250 KN |
4 |
Maximum opening of unpacking hand |
900mm |
|
|
2 |
Maximum pressing force |
260KN |
5 |
Maximum stretching length of master cylinder |
1280mm |
|
|
3 |
System work pressure |
21.5Mpa |
6 |
Unpacking oil cylinder model |
YG220/140 |
|
|
4 |
Electric motor |
oil pump |
||||
|
Model |
Y225M-6 |
Model |
F40YCY14-1B
|
|||
|
power |
30 KW |
traffic |
40ml/r |
|||
|
Rotation speed |
980r/min |
maximum pressure |
31.5Mpa |
|||
|
Model |
Model |
160YCY14-1B |
||||
|
power |
traffic |
160ml/r |
||||
|
Rotation speed |
maximum pressure |
31.5MPA |
||||
|
5 |
Weight |
6.5 tons |
||||
|
6 |
cooling method |
air cooling |
||||
