Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of bundles breaker machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality bundles breaker machine at low price from our factory. Welcome to contact us for pricelist.

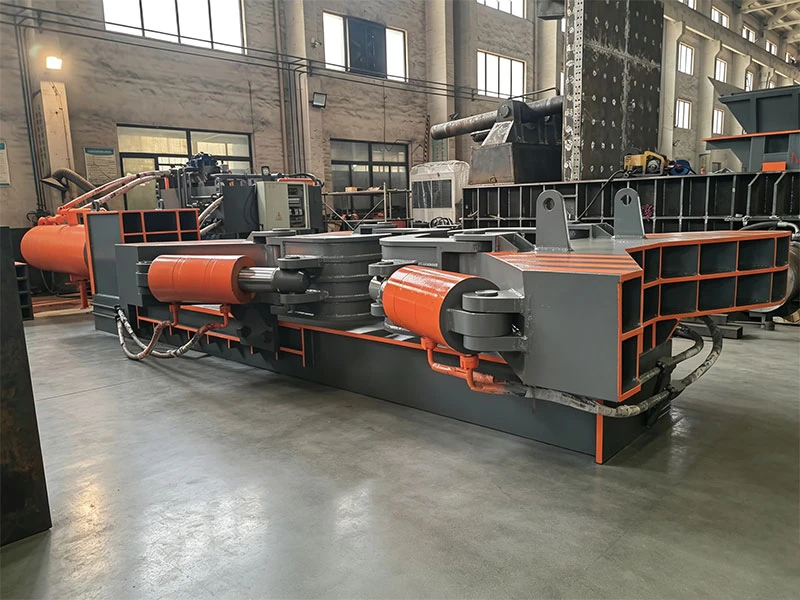

Equipment to ensure the quality of raw materials entering the furnace and improve the added value of scrap steel products. In response to the purchaser's concerns about improving production efficiency and ensuring product quality, this equipment is designed specifically for dismantling high-density scrap metal packaging blocks and scrap iron and steel bar pressing blocks. Through automated hydraulic mechanical gripping and squeezing separation, impurities inside the packaging blocks are accurately removed to ensure scrap steel content and maintain the stability and smelting efficiency of the scrap steel market.
Core Technical Parameters and Adaptability to Working Conditions of Metal Dismantling Machine
Metal Bundles Dismantling Machine hydraulic drive system
The equipment adopts advanced hydraulic plunger pump to supply oil to the integrated oil circuit, and transmits power to the hydraulic cylinder through the distribution manual valve. The pressure can be flexibly adjusted according to the actual working conditions (displayed in real-time by the pressure gauge), running smoothly and with reliable sealing.
Automated disassembly of metal dismantling machine
The package blocks are squeezed and separated by hydraulic mechanical hands, and after multiple disassembly actions, the package blocks are completely disassembled. The entire process does not require manual intervention, significantly reducing labor intensity.
Metal Bundles Dismantling Machine environmental protection and energy efficiency
It has significant advantages such as high automation, high energy efficiency, clean air, and dust-free, perfectly meeting the environmental protection and compliance requirements of modern renewable resource enterprises.
Basic Parameters of Metal Bundles Dismantling Machine
|
Number |
Parameter Name |
Parameter Name |
Number |
Parameter Name |
Parameter Name |
|
|
1 |
Maximum tensile force |
1250 KN |
4 |
Maximum opening of unpacking hand |
900mm |
|
|
2 |
Maximum pressing force |
260KN |
5 |
Maximum stretching length of master cylinder |
1280mm |
|
|
3 |
System work pressure |
21.5Mpa |
6 |
Unpacking oil cylinder model |
YG220/140 |
|
|
4 |
Electric motor |
oil pump |
||||
|
Model |
Y225M-6 |
Model |
F40YCY14-1B
|
|||
|
power |
30 KW |
traffic |
40ml/r |
|||
|
Rotation speed |
980r/min |
maximum pressure |
31.5Mpa |
|||
|
Model |
Model |
160YCY14-1B |
||||
|
power |
traffic |
160ml/r |
||||
|
Rotation speed |
maximum pressure |
31.5MPA |
||||
|
5 |
Weight |
6.5 tons |
||||
|
6 |
cooling method |
air cooling |
||||
Choose Hangli for Reliable Quality and Professional Service
For steel mills, scrap metal buyers, and recycling plants, a Metal Unpacking Block Machine is not only an inspection tool-it is an important part of reliable scrap purchasing and quality control. Hangli understands that customers need equipment that is strong, stable, easy to operate, and supported by dependable service throughout its working life.
As a professional hydraulic machinery manufacturer, Hangli pays close attention to machine structure, hydraulic system performance, component selection, manufacturing precision, and overall operating reliability. Each Metal Unpacking Block Machine is designed for demanding industrial environments and repeated scrap bundle dismantling operations, helping customers inspect compressed metal blocks efficiently and expose hidden materials or unwanted impurities.
Quality does not end when the machine leaves the factory. Hangli provides professional support throughout the customer journey, from equipment selection and technical consultation to production, delivery, installation guidance, commissioning support, and after-sales service. Our team works closely with customers to understand their scrap bundle size, inspection requirements, operating conditions, and production workflow, helping provide a suitable machine configuration rather than a one-size-fits-all solution.
Hangli has obtained ISO9001 Quality Management System certification and CE certification, demonstrating our commitment to standardized quality management and product compliance. With experience in manufacturing metal balers, hydraulic briquetting presses, metal shears, hydraulic stations, oil cylinders, and other hydraulic equipment, Hangli has developed practical expertise in heavy-duty scrap processing machinery.
Built for Quality. Supported by Service.
When choosing Hangli, customers are choosing more than a Metal Unpacking Block Machine. They are choosing a long-term equipment partner focused on reliable machine quality, responsive technical support, professional communication, and practical solutions.
Our goal is simple: help steel mills and scrap buyers inspect materials more reliably, operate equipment with greater confidence, and build a stable long-term partnership with a manufacturer they can trust.
