Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic scrap metal shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality hydraulic scrap metal shear at low price from our factory. Welcome to contact us for pricelist.

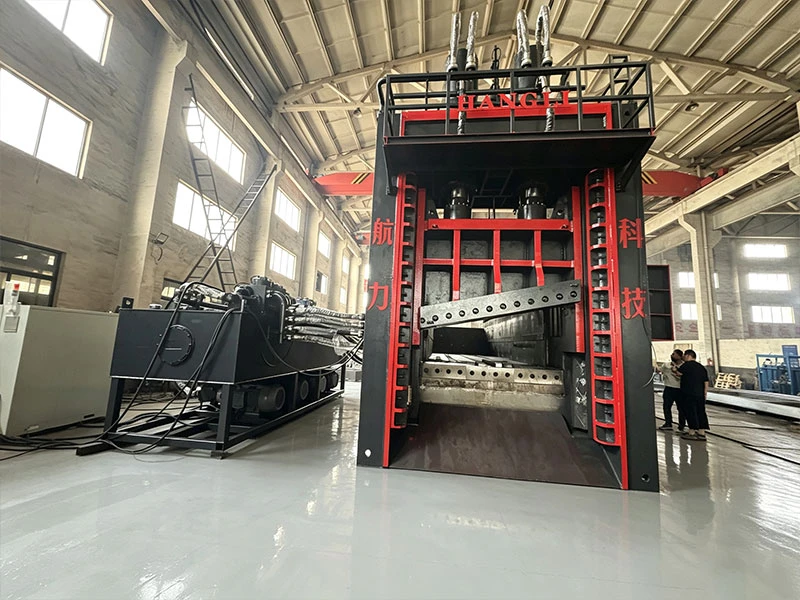

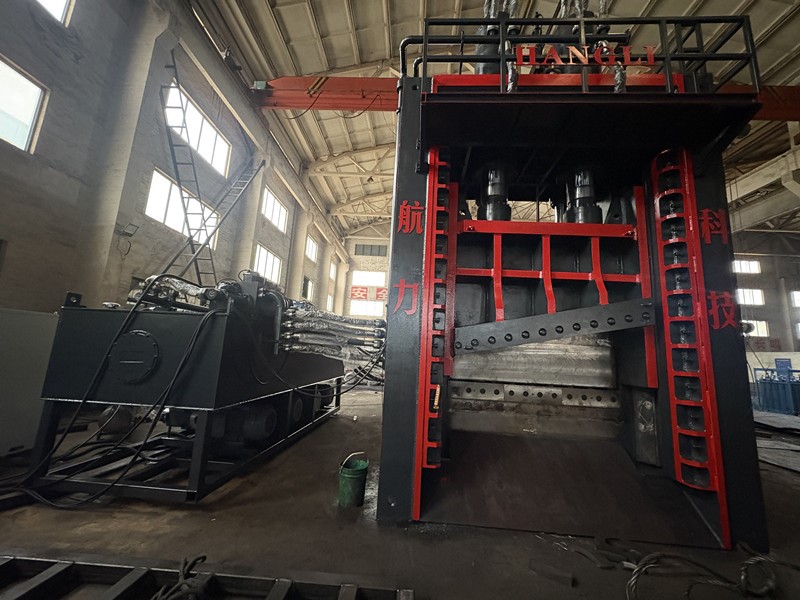

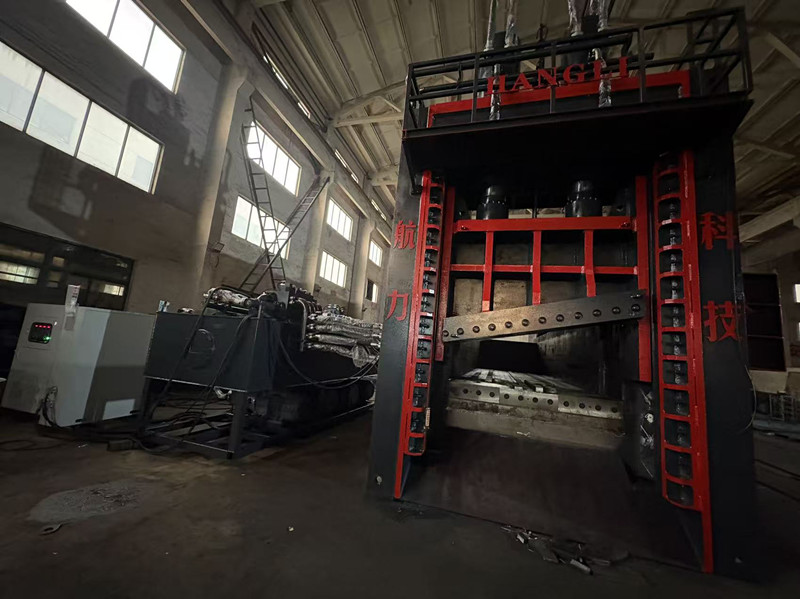

The Gantry Shear Whole machine structure: thickened steel plate welding+annealing to relieve stress, four column guidance+upper crossbeam load-bearing, MTBF fault free operation ≥ 8000 hours

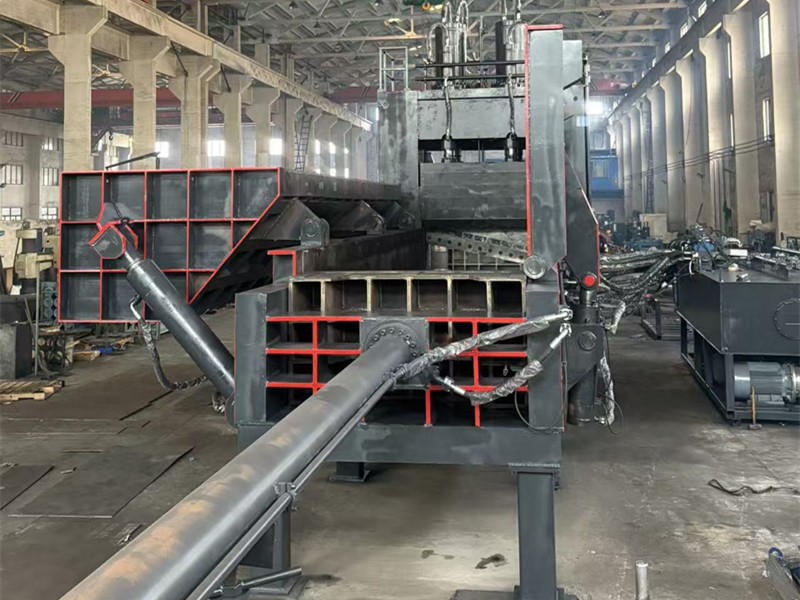

The Gantry Shear machine adopts an integrated process of pre clamping and vertical shearing. The side pressure oil cylinder synchronously locks the material to prevent offset, splashing, and waste rebound. The single shearing pass rate is 100%. The high flow hydraulic circuit is paired with an accumulator for fast return, which increases the circulation speed by 20% compared to traditional models. The hourly processing capacity can reach up to 30 tons, and a single device can replace a 5-8 person manual cutting team, significantly reducing labor costs. The wide body material bin is adapted to excavator/crane automatic feeding, forming a fully automated feeding clamping shearing discharging process, suitable for 24-hour
Technical Parameters of Gantry Shear
|
Model |
Max shear force (ton) |
Container size (mm) |
Cutting width (mm) |
Production (T/h) |
Cutting frequency (t/min) |
Main motor power (KW) |
|
MC-500 |
500 |
6000×1600×650 |
1600 |
8-12 |
3 |
2×45 |
|
MC-630 |
630 |
8000×1600×900 |
1600 |
10-15 |
2.9 |
3×45 |
|
MC-800 |
800 |
8000×2000×900 |
2000 |
15-20 |
2.4 |
4×45 |
|
MC-1000 |
1000 |
8000×2000×1000 |
2000 |
20-25 |
2.6 |
5×45 |
|
MC-1250 |
1250 |
8000×2500×1200 |
2500 |
25-30 |
2.6 |
5×45 |
|
MC-1600 |
1600 |
8000×2500×1200 |
2500 |
28-35 |
2.4 |
6×55 |
Continuous industrial production, quickly releasing production capacity, shortening order delivery cycle, and reducing investment payback period by 20% -30% compared to the industry average.
The Gantry Shear Blade cost
Four sided usable blades+easy to replace design, no need for overall replacement, reducing blade loss by 40% per ton of material

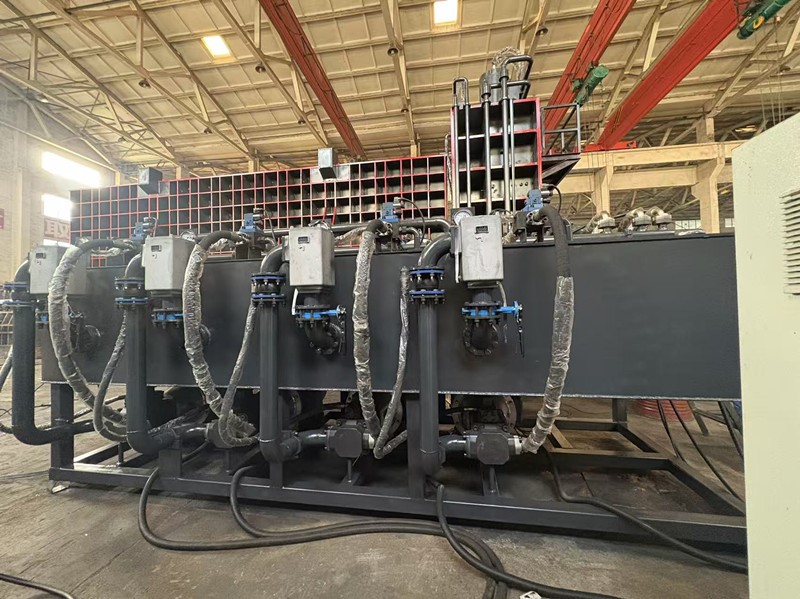

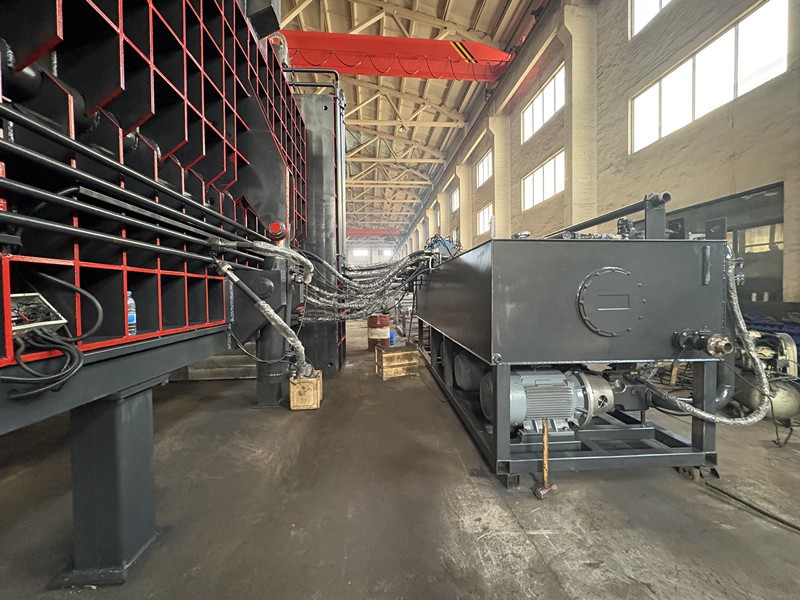

The Gantry Shear Hydraulic system
Independent cooling filter+high-pressure sealing components, oil replacement cycle extended to 1000 hours, reducing oil leakage and shutdown risks
Lubrication system
Fully automatic centralized lubrication, automatic oil supply upon startup, eliminating manual maintenance and reducing maintenance time
The Heavy duty gantry shear machine Energy consumption optimization
The servo variable pump supplies oil as needed, resulting in a significant decrease in no-load energy consumption. The electricity consumption per ton of steel is 15% lower than the industry average
Technical Specifications of the MC-800 Gantry Shear Machine
|
Serial number |
Reference nouns and content |
Note |
||||
|
1 |
Shear cylinder |
Model |
YG450/320 |
Quantity |
2 pieces |
800 tons |
|
Public Praise for Push |
4000kNx2 |
Journey |
1035mm |
|||
|
2 |
Material pressing cylinder |
Model |
YG220/160 |
Quantity |
2 pieces |
190 tons |
|
Public Praise for Push |
950kNx2 |
Journey |
1200mm |
|||
|
3 |
One feeding oil cylinder |
Model |
YG160/120 |
Quantity |
2 pieces |
40 tons |
|
Public Praise for Push |
200kNx2 |
Journey |
4410mm |
|||
|
4 |
Two pushing oil cylinders |
Model |
YG160/120 |
Quantity |
2 pieces |
40 tons |
|
Public Praise for Push |
200kNx2 |
Journey |
3570mm |
|||
|
5 |
Hydraulic system operating pressure |
≤ 26MPa (feeding system pressure 10 MPa). |
||||
|
6 |
Blade length |
2000mm |
||||
|
7 |
Cut the minimum opening |
550mm |
||||
|
8 |
Maximum opening for blanking |
1200mm |
||||
|
9 |
Workbench height |
1100mm |
|
|||
|
10 |
Shear angle |
12° |
||||
|
11 |
Shear range (unit: mm) |
Round steel φ110, square steel 100x100, steel plate 80x500 |
||||
|
12 |
No-load single cycle time |
2.5~3.5 times per minute |
||||
|
13 |

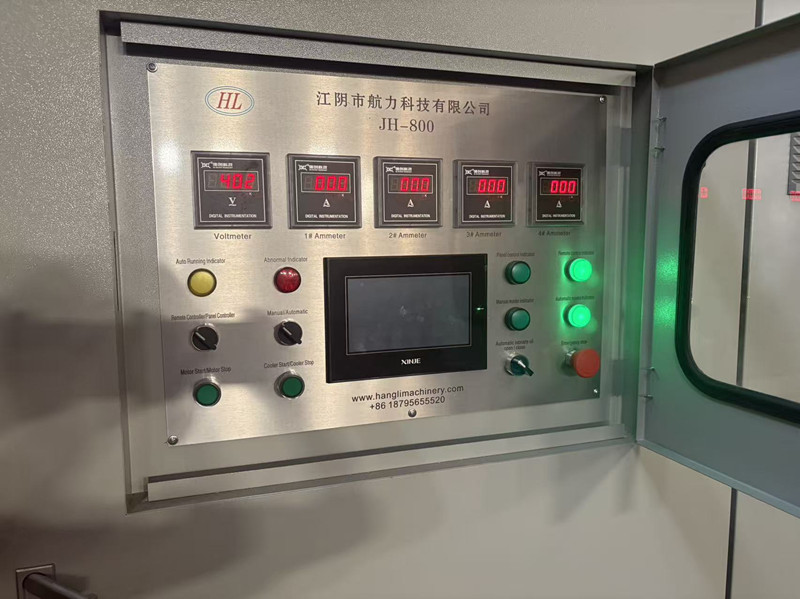

Operating methods |
Manual and automatic control, remote control |
||||
|
14 |
Material Box Specifications (Length*Width*Height) |
8000x1900x1200mm |
Hydraulic cylinder pushing |
|||
|
15 |
Power specifications |
380V 50Hz |
||||
|
16 |
Total equipment power |
185.345kW |
||||
|
17 |
Fuel tank capacity |
6000L (with patented air cooling, power 0.145kW) |
26 barrels |
|||
|
18 |
Land area |
17000x7000mm |
||||
|
19 |
Cooler |
Model |
BRO.25-30 |
Heat exchange area |
30m² |
Plate style |
|
20 |
Cooling tower |
Model |
LJR-50L |
Achievements |
1.5kW |
|
|
21 |
Circulating water pump |
Model |
IRG65-125A |
Achievements |
2.2kW |
|
|
Flow |
29m³/hr |
Speed |
2900r/min |
|||
|
22 |
Circulating oil pump |
Model |
YG50-125 |
Achievements |
1.5kW |
|
|
Flow |
16.3m³/hr |
Speed |
2900r/min |
|||
|
23 |
Servo motor |
Model |
DLK-180 |
Quantity |
1 unit |
Double shaft output |
|
Rated speed |
0～2200r/min |
Rated power |
180kW |
|||
|
24 |
Hydraulic pump |
Model |
A4V250 series 250 |
Quantity |
2 sets |
High-speed pump One of them is a twist |
|
Nominal displacement |
250+250ml/r |
Rated pressure |
35MPa |
|||
