Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of gantry shear scrap metal in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality gantry shear scrap metal at low price from our factory. Welcome to contact us for pricelist.

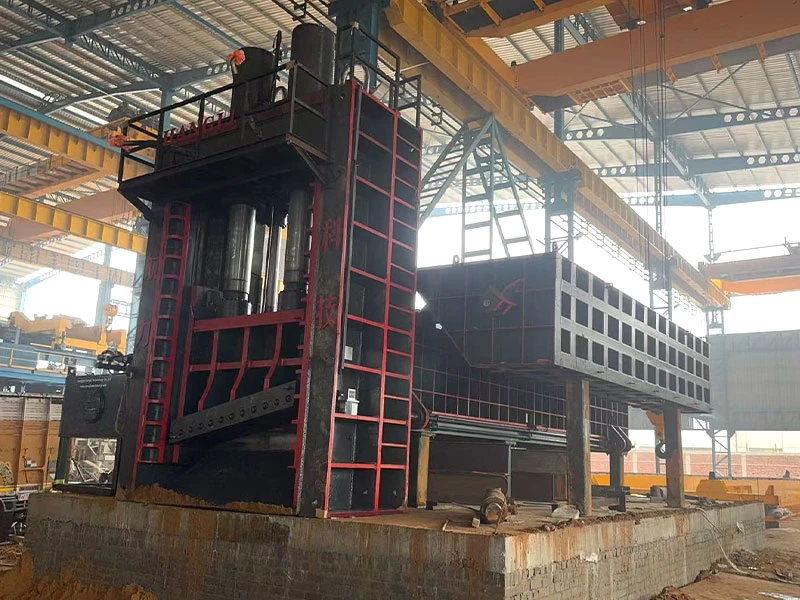

The MC series gantry shear is mainly used to shear scrapped steel billets, square steels, I-beams, channel steels, steel pipes, and light metal structural large pieces made of steel into scrap steel that meets the requirements of furnace materials. It is an ideal equipment used by steel mills, non-ferrous metal smelting industries, precision casting industries, and raw material manufacturers.
The characteristics of the Hydraulic Gantry Shear Machine for Steel Scrap Recycling are: large box size and a wide range of material sizes that can be processed.
Technical Parameters of Gantry Shear
|
Model |
Max shear force (ton) |
Container size (mm) |
Cutting width (mm) |
Production (T/h) |
Cutting frequency (t/min) |
Main motor power (KW) |
|
MC-500 |
500 |
6000×1600×650 |
1600 |
8-12 |
3 |
2×45 |
|
MC-630 |
630 |
8000×1600×900 |
1600 |
10-15 |
2.9 |
3×45 |
|
MC-800 |
800 |
8000×2000×900 |
2000 |
15-20 |
2.4 |
4×45 |
|
MC-1000 |
1000 |
8000×2000×1000 |
2000 |
20-25 |
2.6 |
5×45 |
|
MC-1250 |
1250 |
8000×2500×1200 |
2500 |
25-30 |
2.6 |
5×45 |
|
MC-1600 |
1600 |
8000×2500×1200 |
2500 |
28-35 |
2.4 |
6×55 |
How Metal Gantry Shear Works?
Scrap metal is loaded into the machine's large-capacity material box and pushed to the shearing station by a hydraulic pushing mechanism. Side-press and hold-down cylinders clamp the material tightly to prevent shifting or spring-back during cutting. Main shearing cylinders then drive the movable blade downward to shear the material against the fixed bottom blade. After each cut, the blade carriage returns and the pusher advances material for the next cycle.

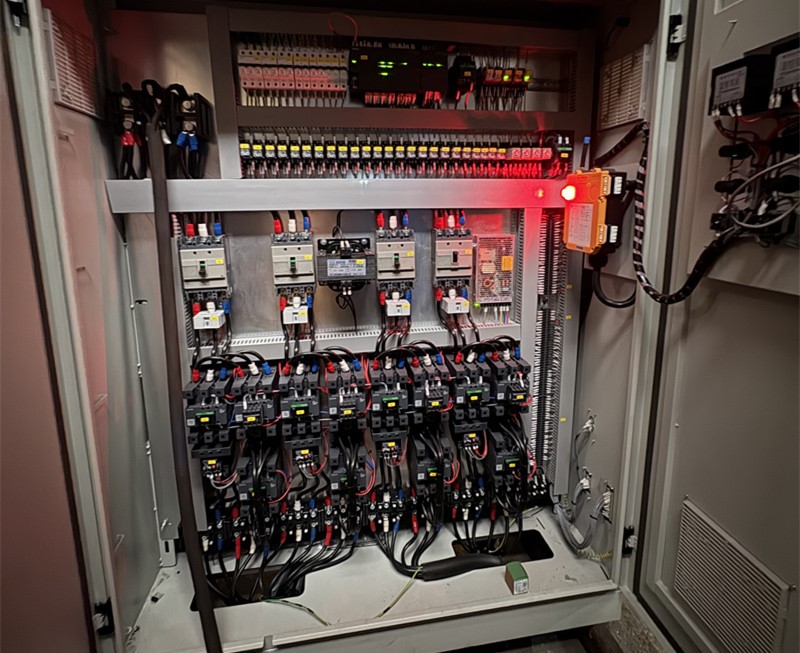

The entire process is controlled by a PLC automatic control system supporting manual, semi-automatic, and fully-automatic cyclic operation modes. Output size can be precisely adjusted by setting the feeding stroke.
