Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of scrap metal gantry shear in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality scrap metal gantry shear at low price from our factory. Welcome to contact us for pricelist.
Core Technical Parameters, Professional Selection Criteria, Procurement Decisions Without Pitfalls
Rated shear force: 500T -2000T full coverage, suitable for graded processing of light/medium/heavy scrap steel, meeting the shear requirements of high hardness materials such as heavy waste, heavy steel structures, ship plates, etc
Effective length of blade: 1600mm -3200mm, wide mouth feeding does not require secondary splitting, suitable for batch processing of large profiles and whole bundles of materials
The Gantry Shear Maximum cutting thickness: carbon steel plate ≤ 200mm, profile section ≤ 300mm, one cut forming without jamming or deformation
The Gantry Shear Work cycle: 8-12 seconds/time, standard production capacity 10-30 tons/hour, continuous operation without attenuation
The Gantry Shear Drive configuration

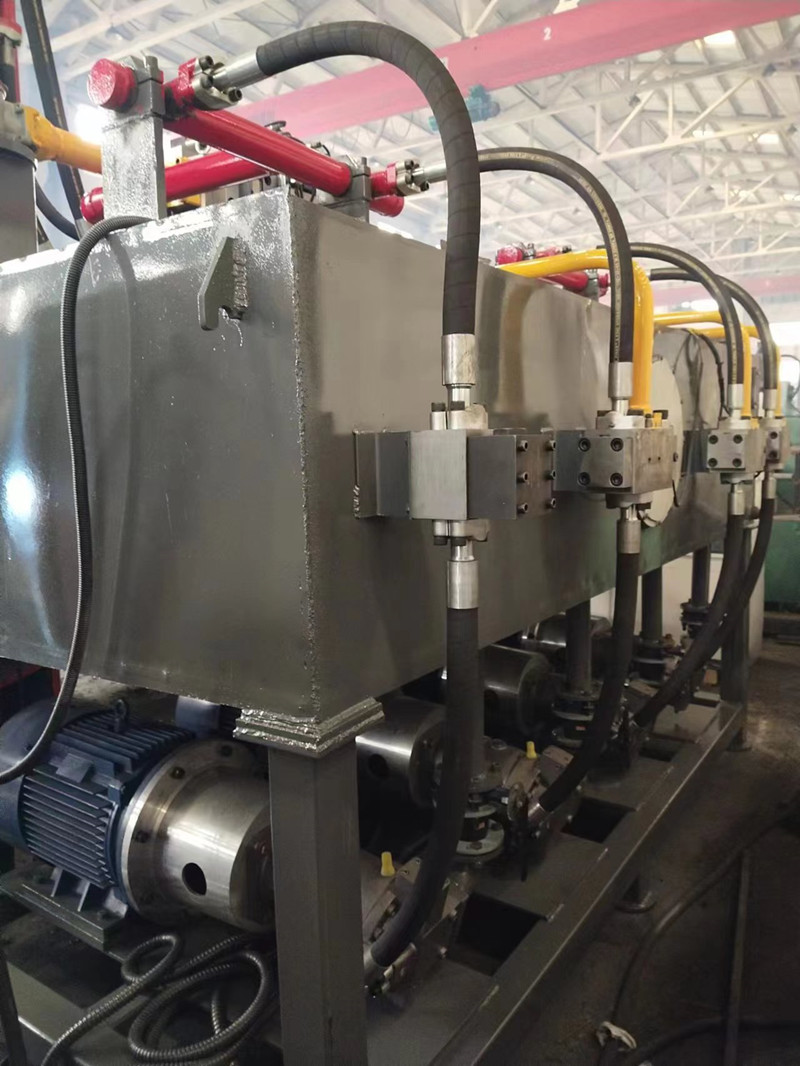

Servo variable hydraulic system+high-power motor group, energy-saving by 15% -25%, stable pressure, controllable oil temperature
The Gantry Shear Control unit
PLC intelligent control cabinet+touch screen, support manual/semi-automatic/full-automatic three mode switching, with fault self diagnosis, pressure protection, counting and statistics functions
The gantry shear machine for scrap metal recycling Blade material
60SI2CRV/H13 alloy tool steel, four sides can be flipped for use, with a 300% increase in lifespan

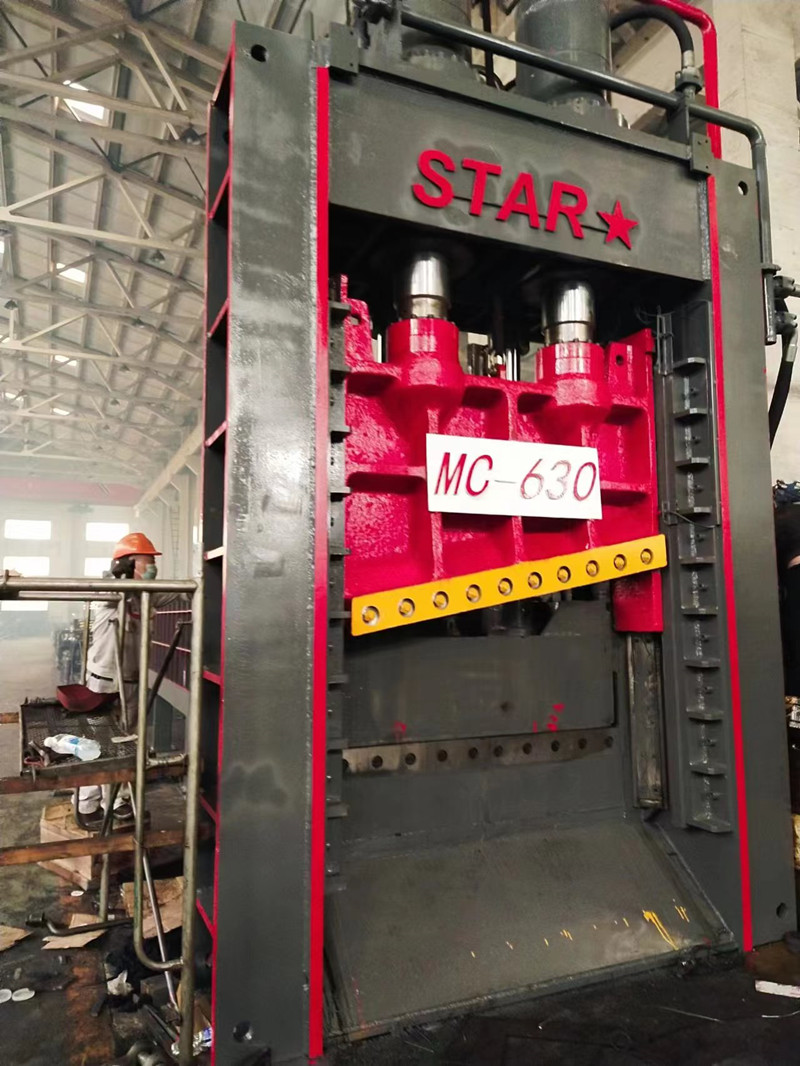

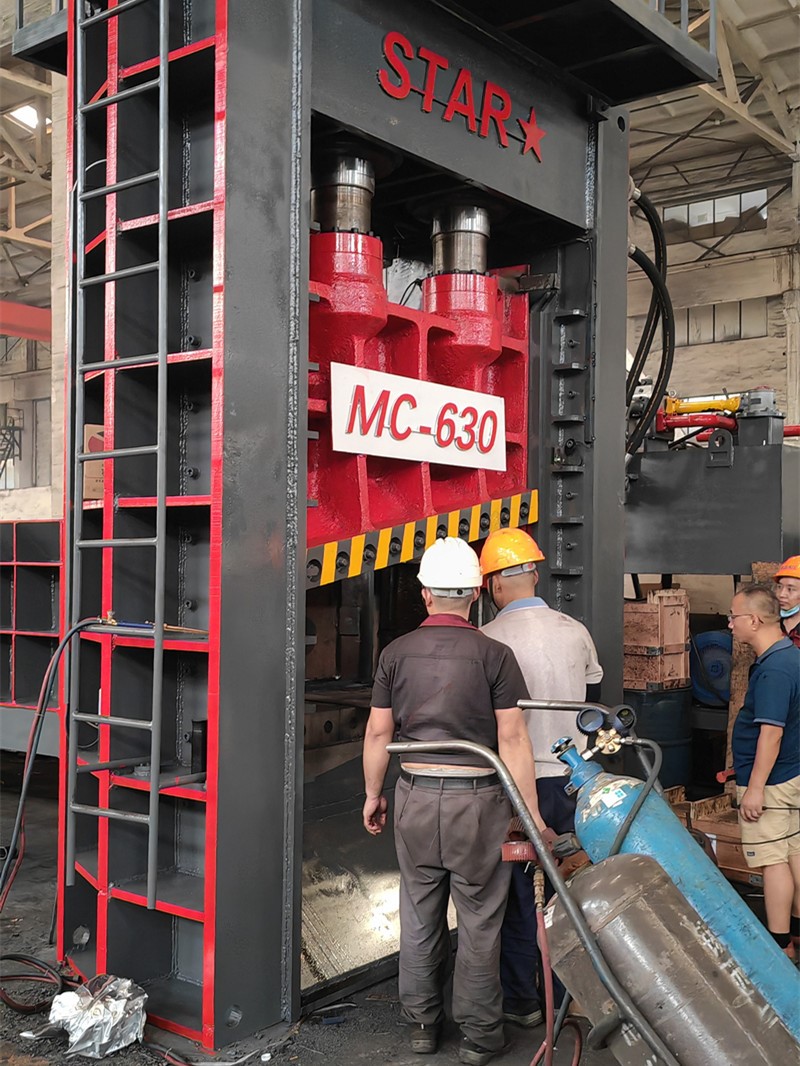

Main Technical Parameters of MC-630 Gantry Shearing Machine
| No. |
Parameter Name |
||||
|
1 |
Shear cylinder |
model |
YG400/280-980 |
itinerary |
980mm |
|
maximum thrust |
3140*2KN |
quantity |
2 |
||
|
2 |
Pressure oil cylinder |
model |
YG200/140-1000 |
itinerary |
1000mm |
|
maximum thrust |
785KN*2 |
quantity |
2 |
||
|
3 |
Pushing oil cylinder |
model |
YG200/140-6000 |
itinerary |
6000mm |
|
maximum thrust |
785KN*1 |
quantity |
1 |
||
|
4 |
Container size (length * width * height) |
6000*1500*800mm(Open type material box) |
|||
|
5 |
Working pressure of hydraulic system |
25MPa |
|||
|
6 |
Cutting blade length/minimum cutting opening |
1600mm/550mm |
|||
|
7 |
Maximum pressure opening |
1000mm |
|||
|
8 |
Total equipment power |
111KW |
|||
|
9 |
Power Specifications |
380V/3PH. 50HZ |
|||
|
10 |
Shear angle |
12degrees |
|||
|
11 |
Number of Cuts |
3-4times/minutes |
|||
|
12 |
electric motor |
model |
Y225M-4 |
rated power |
45KW |
|
nominal speed |
1450r/m |
quantity |
3 |
||
|
13 |
hydraulic pump |
model |
A4V250 |
Nominal pressure |
31.5MPa |
|
rated displacement |
250ml/r |
quantity |
3 |
||
|
14 |
Water cooled radiator |
model |
GLC4-25 |
heat dissipation area |
25m₂ |
|
pressure resistance |
1.5MPa |
quantity |
1 |
||
