Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of automatic metal scrap briquetting press in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality automatic metal scrap briquetting press at low price from our factory. Welcome to contact us for pricelist.

The horizontal chip press (also known as the horizontal metal chip compactor) is a specialized equipment that compresses metal chips, coils, shavings, and other waste materials into high-density cylindrical cake blocks through horizontal hydraulic compression. Compared with the vertical chip cake machine, the horizontal structure has unique advantages in feed height, material adaptability, and automation integration.

The metal shavings generated by the mechanical processing industry come in various forms - filamentous, clustered, flaky, and shavings - especially the loose material of the rolled wire. In the vertical chip cake machine, the compression efficiency is extremely low due to the loose material in the compression chamber. The horizontal pancake maker effectively overcomes this problem through its unique horizontal extrusion and multi-directional pre pressing design.

The core value of the horizontal pancake maker lies in:

High density forming: The cake density can reach 5.5-6 tons/m ³, which can directly replace pig iron and scrap steel as smelting raw materials
90% reduction in volume: compression ratio can reach 1:10, significantly reducing storage and transportation costs
Automatic recycling of cutting oil: while forming by cold pressing, the cutting oil is separated from the cake, and the oil can be recycled
No additives required: pure physical cold pressing molding, without changing the chemical composition of the metal
Suitable for automation integration: The horizontal structure is easy to connect with conveyor lines and crushers, achieving fully automatic continuous production

The horizontal chip cake machine is suitable for metal chip types

Cast iron chips: After forming, the density can reach 5-6 tons/m ³, which can directly replace pig iron
Steel shavings/alloy shavings: various types of carbon steel and alloy steel cutting shavings
Copper shavings/copper rice: purple copper, brass, bronze shavings
Aluminum shavings/foam: aluminum alloy profile shavings, aluminum shavings
Other metals: magnesium shavings, titanium shavings, molybdenum shavings, zinc shavings, lead shavings, etc

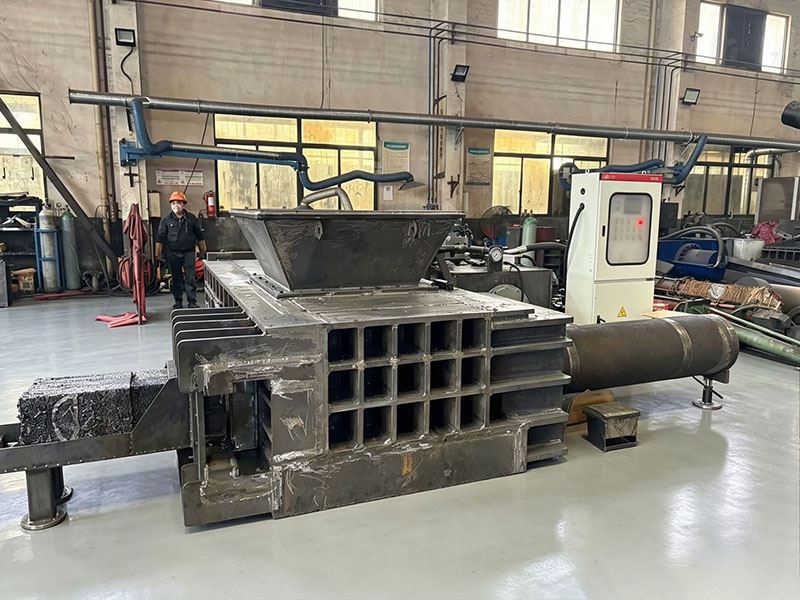

Y83W-1300 Metal Scrap Briquetting Press

Serial number	Reference nouns and content					Note
1	Main pressure cylinder	Model	YG680/610	Quantity	1 piece	1050 tons
		Public Praise for Push	1050kN	Journey	1795mm
2	Rapid cylinder	Model	YG340	Quantity	1 piece	250 tons
		Public Praise for Push	2500kN	Journey	1800mm
3	Secondary pressure cylinder	Model	YG680/670	Quantity	1 piece	1050 tons
		Public Praise for Push	1050kN	Journey	600mm
4	Rapid cylinder	Model	YG340	Quantity	1 piece	250 tons
		Public Praise for Push	2500kN	Journey	600mm
5	Material pressing cylinder	Model	YG180/120	Quantity	2 pieces	140 tons
		Public Praise for Push	700kNx2	Journey	1200mm
6	Pushing oil cylinder	Model	YG125/80	Quantity	1 piece	30 tons
		Public Praise for Push	300kN	Journey	1000mm
7	Hydraulic system operating pressure		≤25MPa			Rated pressure: 30
8	Compression chamber specifications		φ300x550mm
9	Cookie size: diameter x length		φ300x260～330mm
10	Cake Density (Steel)		Crushed material ≤4400m³, iron filings ≤4100m³
11	Production efficiency		2.5-3.5 blocks per minute
12	Production capacity		Crushed material 14~18 tons/hour, iron filings 13~17 tons/hour
13	Dual-shaft material picker		Hopper 4m³, dual reducer 2x15kW
14	Weighing device		2-ton module, 1.5kW			Belt-conveyed type
15	Feeding conveyor		8x0.6m 11kW			Rubber + baffle
16	Operating methods		Manual and automatic control, remote control
17	Power specifications		380V/3P 50Hz
18	Total equipment power		332.1kW
19	Fuel tank capacity		12,000L (patented ventilation fuel tank power 0.15kW x 4).			50 barrels
20	Land area		18000x6000mm
21	Air cooler	Model	FCE-100X-D	Achievements	5.5kW	2 sets
22	Circulating oil pump	Model	YG50-125	Achievements	1.5kW	2 sets
		Flow	16.3m³/hr	Speed	2900r/min
23	Servo motor	Model	DLK-110	Quantity	2 units
		Rated speed	0～2200r/min	Rated power	110kW
24	Servo motor	Model	DLK-55	Quantity	1 unit
		Rated speed	0～2200r/min	Rated power	55kW
25	Hydraulic pump	Model	A4V250 series 250	Quantity	2 sets	High-speed pump
		Nominal displacement	250+250ml/r	Rated pressure	35MPa
26	Hydraulic pump	Model	A4V180 series 180	Quantity	1 set	High-speed pump
		Nominal displacement	180+180ml/r	Rated pressure	35MPa

High-Efficiency Steel Briquetting Press Solutions

Jiangyin Hangli Technology Co., Ltd. provides high-efficiency Steel Briquetting Press solutions for steel mills, metal processing plants, foundries, machining workshops, scrap metal recycling companies, and other industrial facilities that generate large quantities of metal chips and loose steel scrap.

Our Hydraulic Steel Briquetting Press uses high-pressure hydraulic compression to transform loose metal materials such as steel chips, iron filings, cast iron turnings, machining swarf, and other recyclable metal scrap into compact briquettes. The compacted form makes the material easier to collect, store, handle, transport, and recycle while improving the overall efficiency of scrap management.

Efficient Metal Waste Volume Reduction

Loose steel chips and metal turnings can occupy significant storage space and are often difficult to handle efficiently. By applying powerful hydraulic pressure, our briquetting press significantly reduces the bulk volume of metal scrap and produces dense, uniform briquettes. This helps businesses make better use of available storage areas and improve material handling efficiency.

Improve Scrap Handling and Transportation

Compact metal briquettes are easier to load, stack, move, and transport than loose chips. The higher bulk density can help optimize truck loading and reduce unnecessary handling during transportation, providing a more economical solution for large-volume metal recycling operations.

Suitable for Steel and Metal Processing

Our steel briquetting solutions are suitable for a variety of applications, including steel mills, foundries, metal machining, automotive parts manufacturing, metal fabrication, scrap recycling, and metal resource recovery. The equipment can be selected and configured according to the characteristics and processing requirements of different metal materials.

Powerful and Stable Hydraulic Compression

As a professional hydraulic machinery manufacturer, Hangli focuses on reliable hydraulic systems, robust machine construction, and stable pressing performance. The equipment is designed to support efficient and continuous operation in demanding industrial environments while maintaining consistent briquette formation.

Customized Briquetting Solutions

Different customers have different requirements for material type, feed size, moisture content, briquette dimensions, pressing force, processing capacity, and installation conditions. We can provide customized equipment configurations based on the customer's actual production and recycling requirements, helping create a more suitable steel briquetting solution.

A Practical Solution for Resource Recovery

Steel Briquetting Press technology helps convert loose metal waste into compact recyclable materials, supporting more efficient scrap collection, storage, transportation, and reuse. By improving the handling of valuable metal resources, our solutions help customers optimize recycling processes while reducing unnecessary space and logistics requirements.

With ISO9001 quality management system certification and CE certification, Jiangyin Hangli Technology is committed to providing reliable hydraulic machinery and professional solutions for customers in domestic and international markets. From equipment selection and customization to manufacturing and technical support, we aim to be a dependable partner for efficient steel scrap briquetting and metal resource recovery.

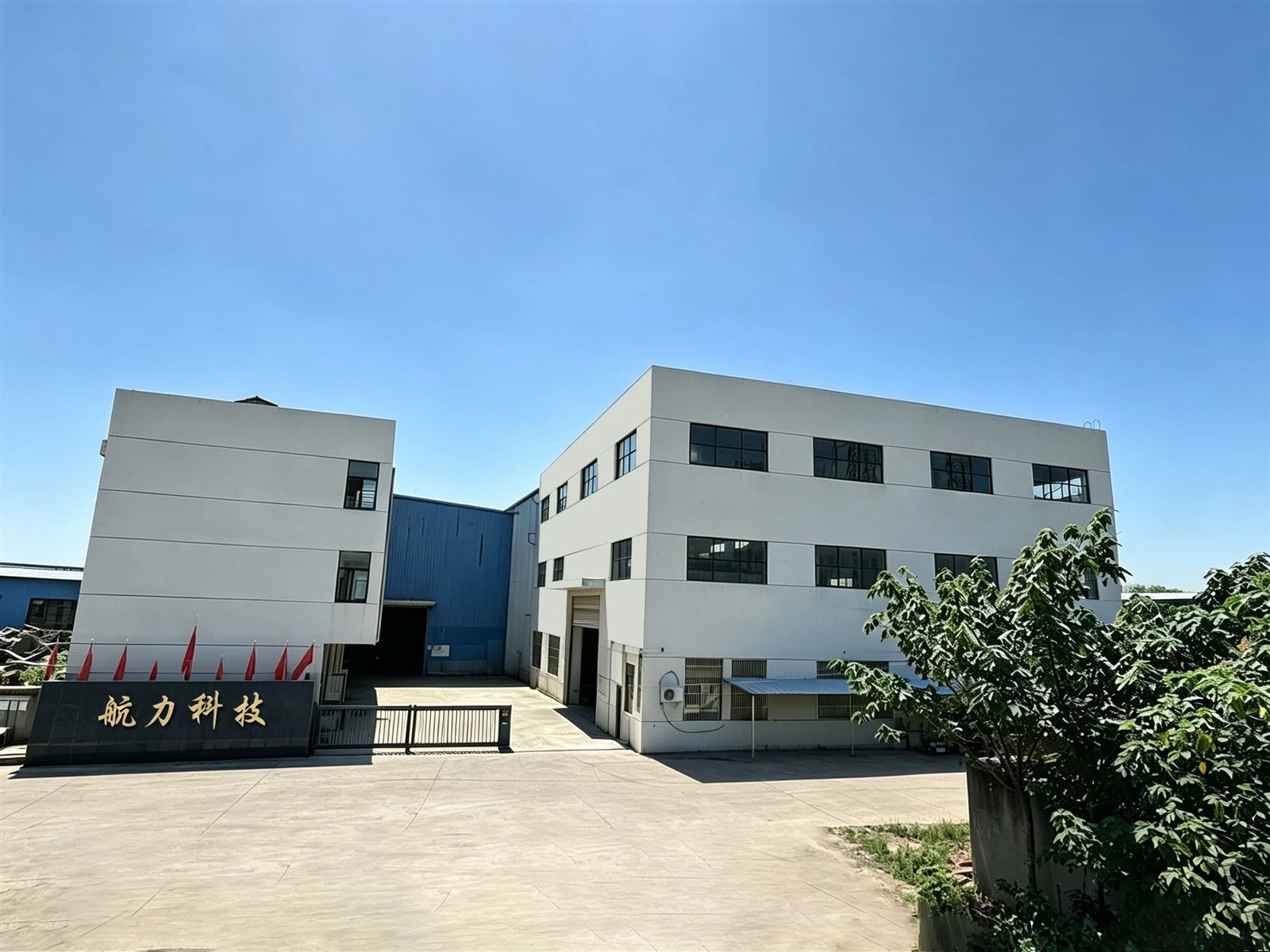

Our Factory
