Jiangyin Hangli Technology Co., Ltd. is one of the leading manufacturers and suppliers of scrap metal press machine in China. We offer the best custom service and OEM service for global clients. Please feel free to buy high quality scrap metal press machine at low price from our factory. Welcome to contact us for pricelist.
How Metal Balers Work
The baling process follows a standardized compression cycle:
Feeding: Scrap is loaded into the compression chamber - manually for small operations, or via conveyor/grapple for industrial throughput
Hydraulic Compression: The main hydraulic ram engages, applying controlled force to compress material against a fixed wall
Bale Formation: Material is compressed layer by layer to achieve target density and size
Ejection: Finished bales are automatically ejected via side push, turnover, or front discharge
Horizontal Metal Balers
Best For:
High-volume continuous operations
Processing large scrap pieces (car bodies, structural steel)
Integration with conveyors and hoppers
Key Features:
Material fed horizontally

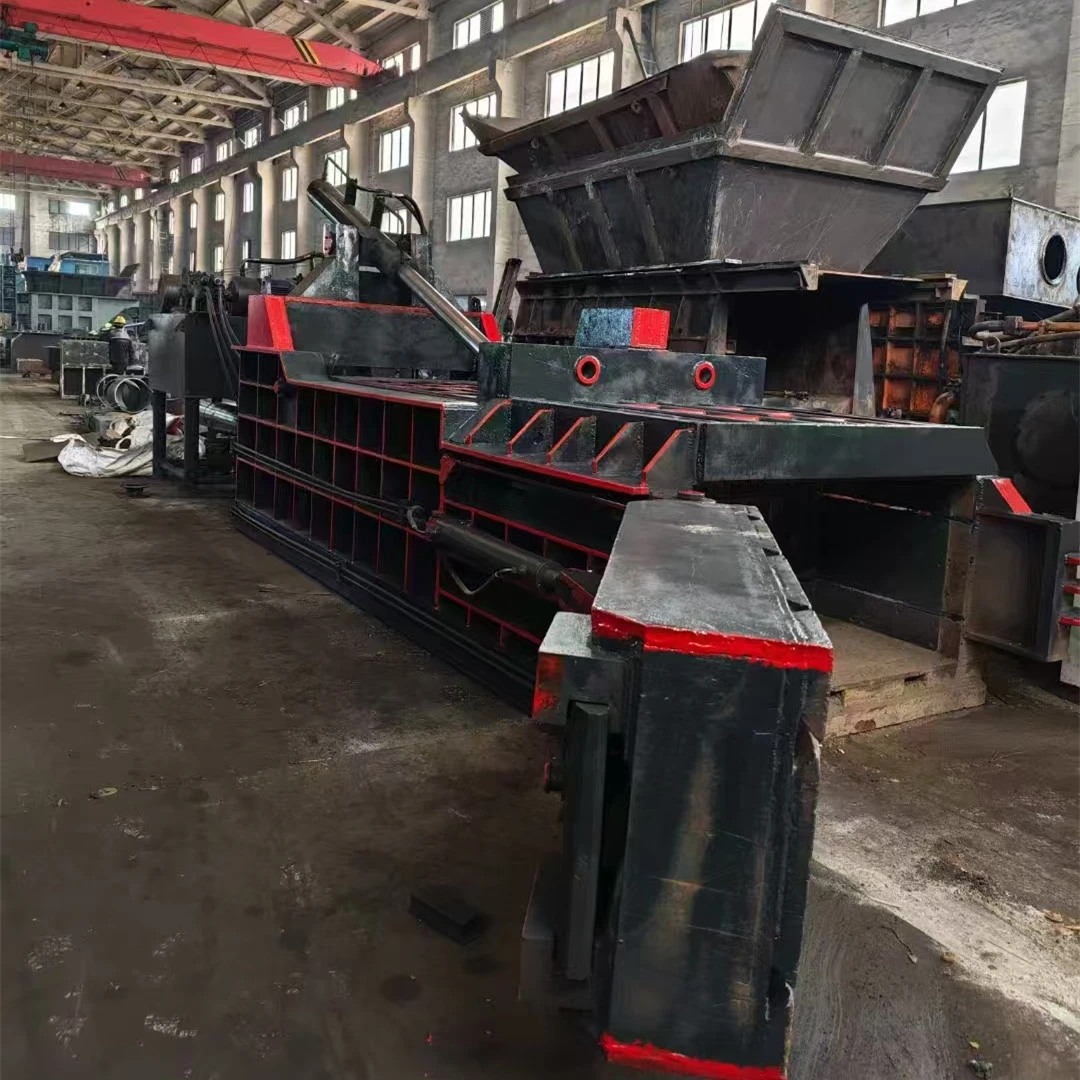

The Iron Scrap Baler Machine features fully-automatic cyclic operation.
Higher throughput than vertical models
Labor savings with auto-tying and ejection
Key Benefits:
Higher throughput: Faster processing for industrial volumes
Automation: Conveyor integration for smooth workflow
Dense bales: Mill-sized bales bring higher resale value
Labor savings: Reduced manual handling
Vertical Metal Balers
Best For:
Lower volumes of metal scrap
Facilities with limited floor space
Mixed recycling streams
Cost-sensitive operations
Key Features:
Compress material from top to bottom
Most economical option
Manual loading and hand-tying typically required
Technical Parameters of Y81F-200 Metal Baler Machine
|
Number |
Parameter name and content |
Remark |
||||
|
1 |
Main pressure cylinder |
Model |
YG320/220 |
quantity |
2 pieces |
200 tons x2 |
|
Nominal thrust |
2000kN |
trip |
570mm |
|||
|
2 |
Side pressure cylinder |
Model |
YG220/160 |
quantity |
2 pieces |
200 tons |
|
Nominal thrust |
1000kNx2 |
trip |
1650mm |
|||
|
3 |
Door cover cylinder |
Model |
YG180/120 |
quantity |
1 piece |
65 tons |
|
Nominal thrust |
650kN |
trip |
1520mm |
|||
|
4 |
Flip-flop oil cylinder |
Model |
YG125/80 |
quantity |
1 piece |
9.5 tons |
|
Nominal thrust |
95kN |
trip |
275mm |
|||
|
5 |
work pressure |
≤25MPa (Folding pressure 8MPa) |
Rated 28MPa |
|||
|
6 |
Material box (compression chamber) |
1800x1400x800mm |
Length x Width x Height |
|||
|
7 |
Package section size x shortest length |
300 Octagonal bag x300mm |
||||
|
8 |
Package density (steel) |
≤2700/m³ |
||||
|
9 |
Single idle cycle time |
About 90 seconds |
||||
|
10 |
Operation method |
Hand to body integration, remote control operation |
||||
|
11 |
Productivity |
About 7-15 packs per hour, |
||||
|
12 |
Packing method |
Retrieve the bag from the front |
||||
|
13 |
Power Specifications |
380V/3P 50Hz |
||||
|
14 |
Total equipment power |
Total equipment power |
||||
|
15 |
Fuel tank capacity |
Fuel tank capacity |
7barrels |
|||
|
16 |
floor area |
floor area |
||||
|
17 |
cooler |
Model |
FCE-50 |
rated power |
0.75kW |
Air cooled type |
|
18 |
motor |
Model |
YE3-200L-6 |
quantity |
2 units |
|
|
Rated speed |
970r/min |
rated power |
22kW |
|||
|
19 |
hydraulc pump |
Model |
160YCY14-1B |
quantity |
2 units |
|
|
Nominal displacement |
160ml/r |
rated pressure |
31.5MPa |
|||
